A customer recently asked me to monitor their access points. Currently, they had no monitoring system for their 100+ access points other than a firewall view showing the status of individual access points. The firewall in question was a Fortigate 660e.
I checked, and we already have an NEP that performs monitoring for Fortinet, which is the following: nep-network-fortinet-firewall — nep — Bitbucket
This NEP allows you to install plugins for Centreon, who are our partners. Here’s the documentation for the Centreon plugin used with this NEP: Fortinet Fortigate SNMP | Centreon Documentation
The feature we’ll focus on here is Ap-Usage. To use this metric, it must be configured on the firewall. Once that’s done, we can use this KPI and query the firewall with the following command:
/usr/lib/centreon/plugins/centreon_fortinet_fortigate.pl
--mode ap-usage --hostname <ip_host>
--snmp-community <community>
--snmp-version <community_versione>
--snmp-timemammout '15'
--snmp-retries 2This checks all access points present and monitored by Fortinet. In some cases, if there are many devices, it will overflow, so it’s recommended to also have a specific check and monitor them individually using this command:
/usr/lib/centreon/plugins/centreon_fortinet_fortigate.pl
--mode ap-usage --hostname <ip_host>
--snmp-community <community>
--snmp-version <community_versione>
--snmp-timemammout '15'
--snmp-retries 2
--filter-name=<ap_name>Once this is done, we can verify whether the access point with the name <ap_name> is OK or not.
Here’s an example of the output:
OK: Access point 'XXXX' status: onLine [admin: enable], traffic in: 107.04 Kb/s, traffic out: 404.44 Kb/s, current client connections: 1, cpu usage: 8.00 %, memory usage: 57.00 % | 'traffic_in'=107042.92b/s;;;0; 'traffic_out'=404439.38b/s;;;0; 'clients'=1;;;0; 'cpu'=8.00%;;;0;100 'memory'=57.00%;;;0;100

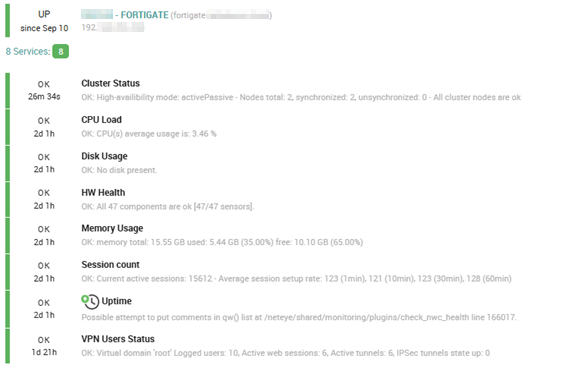

And so with these metrics, you can automatically build graphs that are then reported by NetEye. For the firewall device, we already have the following monitoring tools ready for use with NEP:

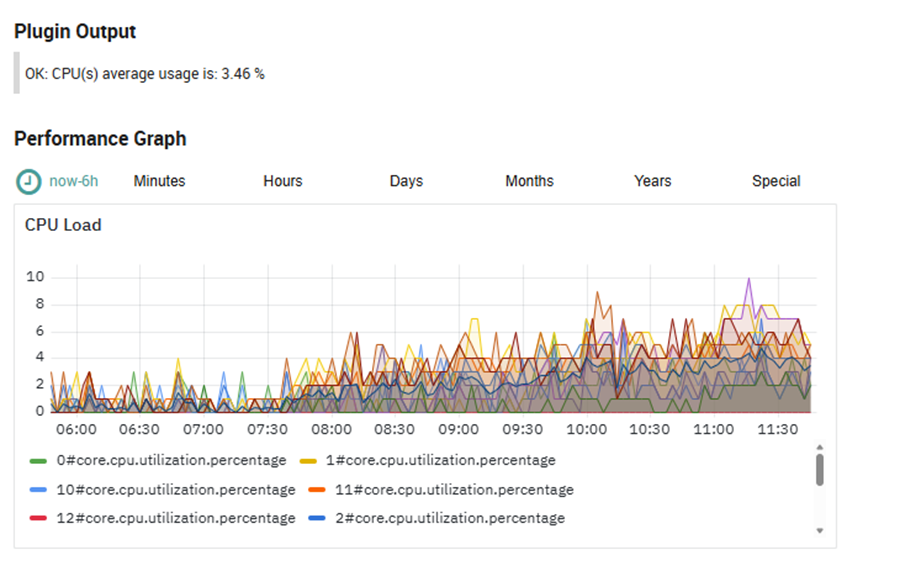

With the related metrics in Influx. Here, for example, is CPU load:

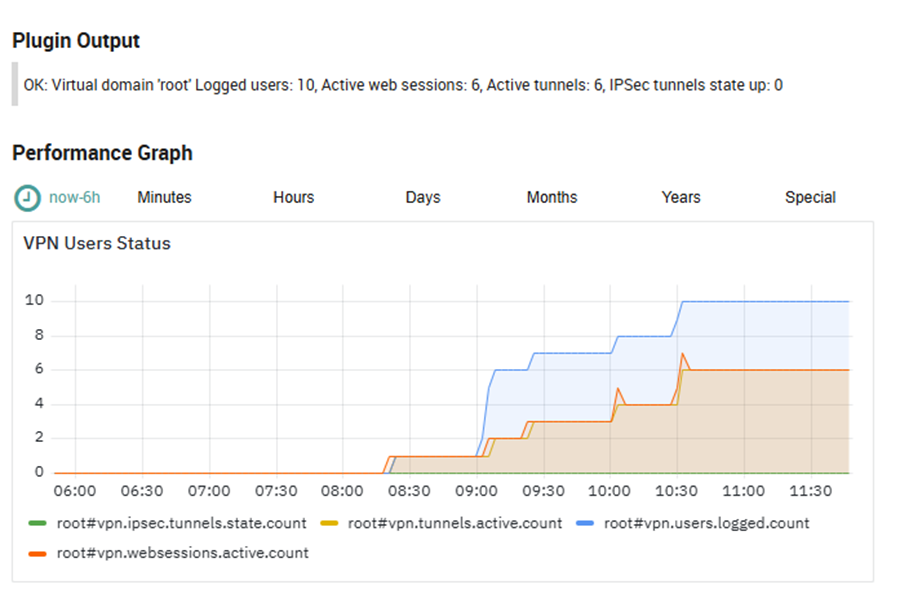

Here’s a graph of connected VPN Users:

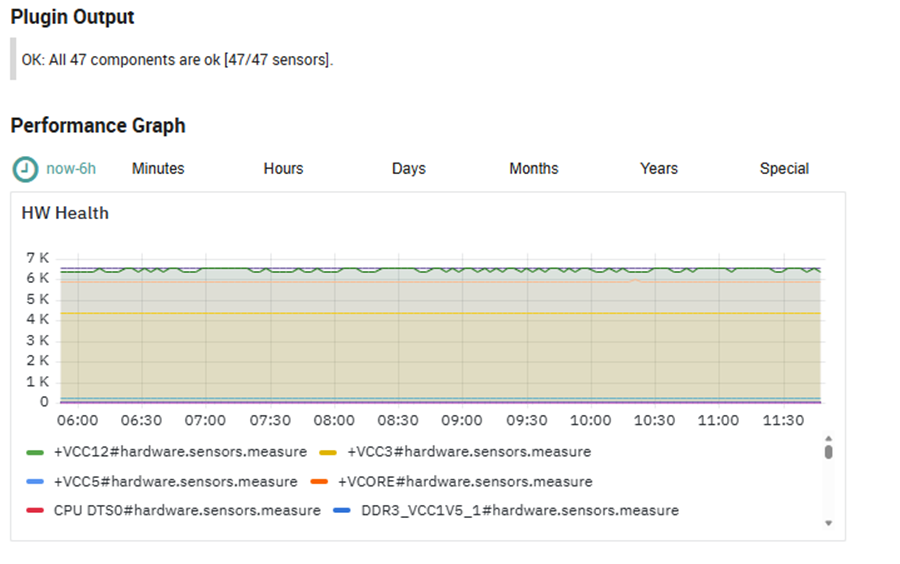

And here’s Hardware Health:
Access point monitoring will soon be added, as I mentioned above. It will also be possible to have a list of access point hosts to which you can add the new service based on a new template that will query the firewall for the various access points.
If you need to implement this urgently, you can clone the current command nx-c-centreon-fortinet-fortigate-cpu and the associated service template nx-st-agentless-snmp-centreon-fortinet-fortigate-cpu, or another one in that category.
Once you’ve applied this service to the new access point hosts, you’re done, and voilà! You’ve monitored your access points.
Otherwise if you prefer, you can wait for Santa Claus to arrive, who might bring this NEP. Santa Claus is coming, Ho Ho Ho!
