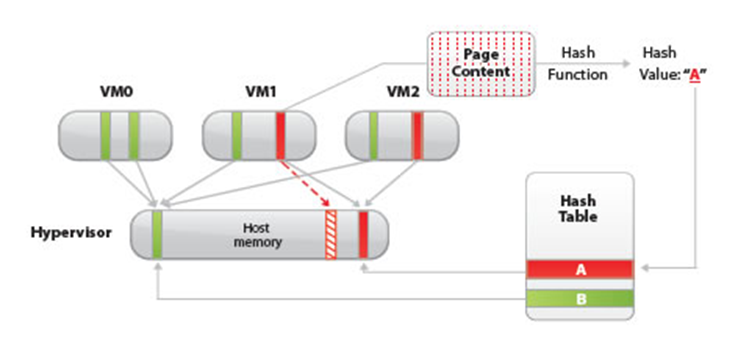

TPS (Transparent Page Sharing) is a proprietary functionality in VMware ESX(i) which essentially does deduplication of memory pages used for virtual machines. Identical memory content across multiple machines thus only consumes memory once.
When you have multiple virtual machines with the same guest operating system running, there’s a high chance of identical content which can be easily deduplicated to save memory. This however comes with costs in terms of a small performance decrease.
Due to the performance impact, Transparent page sharing (TPS) is activated only under memory pressure, when available RAM on the host is below a customizable threshold.
The Bad News
A few years ago, an academic paper showed that in a special customized environment, TPS could be used to bypass security and access the memory of a different virtual machine on the same host.
Even if this was valid only in that specific customized environment (VMware believes information being disclosed in real world conditions is unrealistic), VMware decided to disable TPS by default:
TPS must now be configured manually, and it’s enabled only between virtual machines with the same
sched.mem.pshare.salt
which is a per-VM custom string parameter.
Very few people know this parameter and set it on their VMs groups!
Performance Side Effects

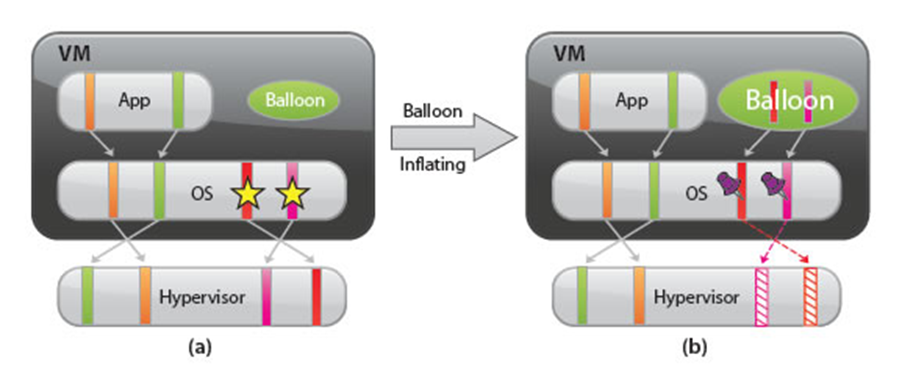

Having disabled TPS, an ESXi host going low on memory (for example due a hardware failure of a server part of a cluster) could only use some other methods to reclaim memory: such as a memory ballooning driver (which forces the VMs to free up memory):

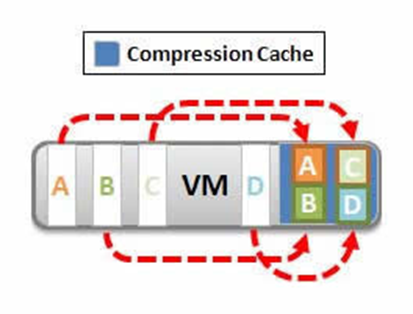

or RAM compression/swap:
Both of these methods have a huge impact on the overall performances, while the impact of TPS would have been minimal.
The Good News
The TPS feature can be re-enabled by default: it’s just a customizable variable in the ESXi configuration.
If it’s possible that a hardware failure could bring the still-alive ESXi hosts into a memory pressure condition, it’s better to prevent the issue, avoid memory ballooning / compression and let TPS reclaim memory for free!
It’s just an ESXi host parameter that can be set on the fly:
Mem.ShareForceSalting = 0
This way the TPS feature will be active and ready to reclaim memory, but only when an ESXi is under memory pressure.
