Inside Elastic Security Detection Rules: Internal Structure & Upgrade Mechanics

A Rule Is More Than a Query

In modern detection engineering, a rule is often misunderstood as just a query that triggers alerts. In reality, within Elastic Security, a detection rule is a structured, versioned, and lifecycle-managed object that goes far beyond simple query logic.

Understanding this structure is essential for anyone operating in a Security Operations Center (SOC), especially when managing large-scale detection content and updates.

A detection rule is composed of multiple layers, each serving a specific purpose:

Identity & lifecycle metadata
Execution configuration
Detection logic
Investigation metadata
Integration dependencies
Upgrade state & diff metadata

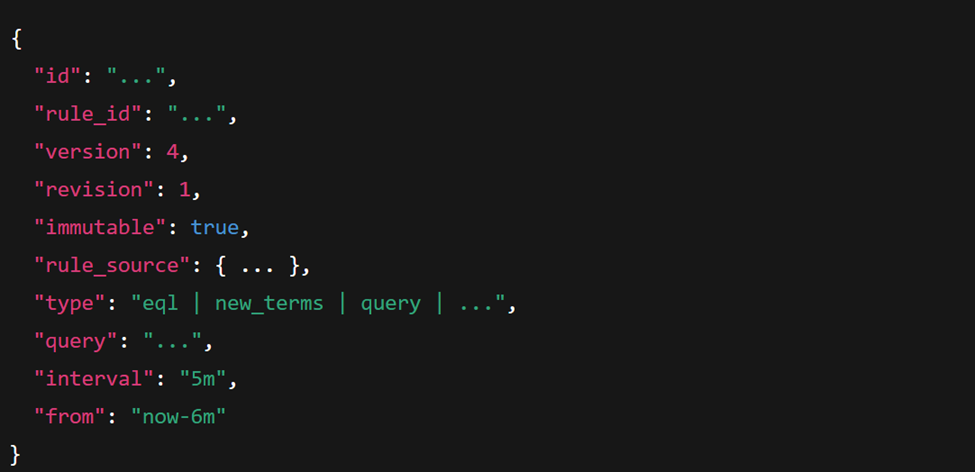

Rule Identification

Elastic separates:

id → Saved object instance (changes per installation)
rule_id → Global identifier (stable across environments)

This design allows Elastic to:

Apply safe upgrades
Track the same pre-built rule across clusters
Compare local customizations

Versioning: Version vs Revision

Rule evolution is governed by two independent mechanisms:

version

Controlled by Elastic (pre-built content updates)
Increases when detection logic or metadata changes
Used for upgrade comparison

revision

Increments on local edits
Tracks administrative changes
Does not imply detection logic changes

This distinction is particularly important in large SOC environments, where maintaining control over updates while preserving local modifications is critical.

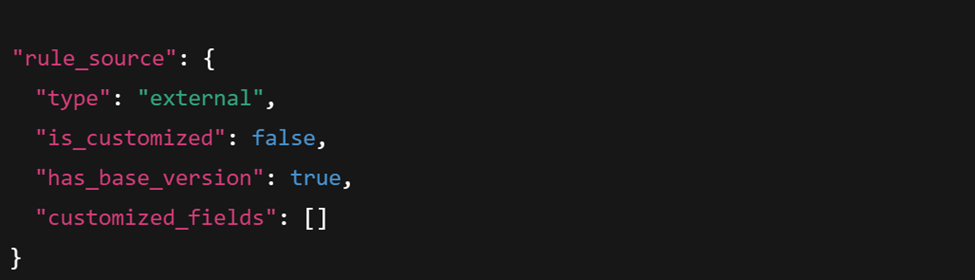

Rule Source & Customization State

Each rule carries important context about its origin and modification status:

The rule originates from Elastic content (external)
Whether it was modified locally
Whether a base version exists for diff comparison

This information forms the backbone of safe and controlled content upgrades. It allows teams to confidently apply updates without losing custom work.

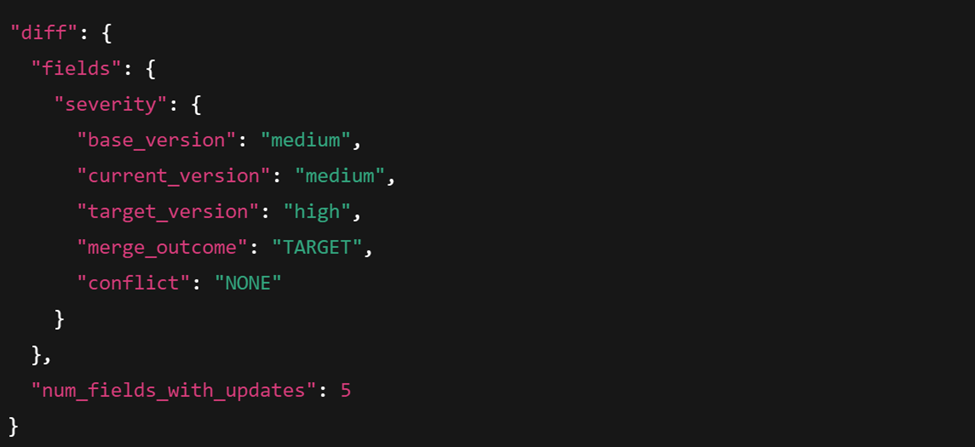

Upgrade Engine: The diff Object

Elastic Security includes a built-in three-way merge system for rule updates. This is implemented through the diff object, which tracks changes at the field level.

Each field includes:

base_version → original Elastic version
current_version → your installed version
target_version → new Elastic release
merged_version → final resolved value
merge_outcome → which side wins (BASE / CURRENT / TARGET)
conflict → NONE or conflict type

This is effectively a three-way merge engine built into Elastic Security.

It allows:

Automatic upgrades when no local changes exist
Preservation of local customizations
Conflict detection at field level

Detection Logic Is Only One Component

While detection logic is central, it’s only one part of the rule.

Different rule types introduce distinct internal structures. For example:

EQL rules rely on event correlation logic
New Terms rules focus on identifying previously unseen values

Each type brings its own configuration and behavior, reinforcing that rules are not uniform objects, but type-driven systems.

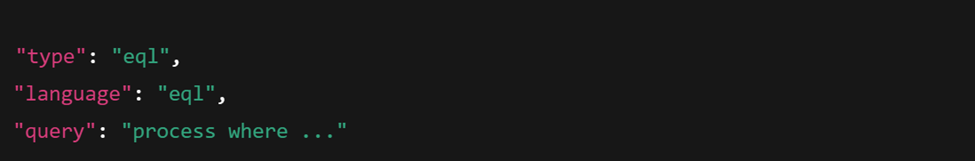

EQL Rule

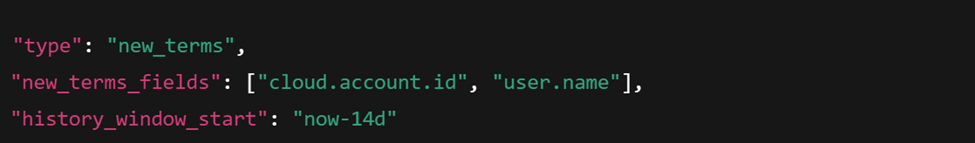

New Terms Rule

Operational Metadata

Rules also include execution-related parameters such as:

interval
from
to
timestamp_override
max_signals
enabled

These directly impact:

Query window calculation
Alert generation boundaries
Ingestion timestamp usage
Alert volume control

Using timestamp_override: event.ingested ensures that late-arriving data is evaluated correctly, improving detection accuracy in delayed ingestion scenarios.

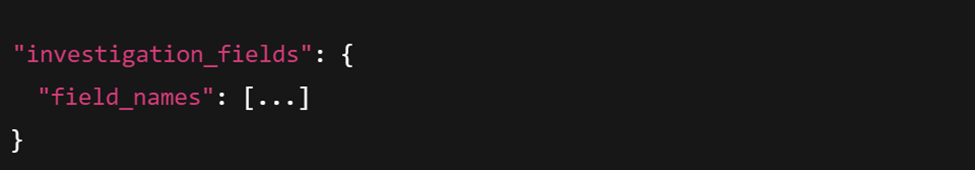

Investigation Enrichment

Detection rules also embed metadata designed to support analysts during investigations. These elements drive:

Alert flyout context
Timeline pivot fields
Analyst triage experience

This is not part of detection logic itself – it’s an intentional design to enhance analyst workflows and reduce investigation time.

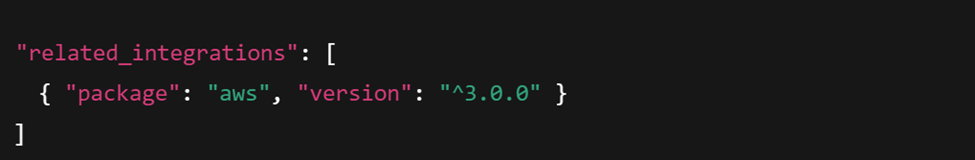

Integration Awareness

Rules can declare dependencies on integrations and required ECS fields. This enables:

Content compatibility validation
Package version awareness
Safer content lifecycle management

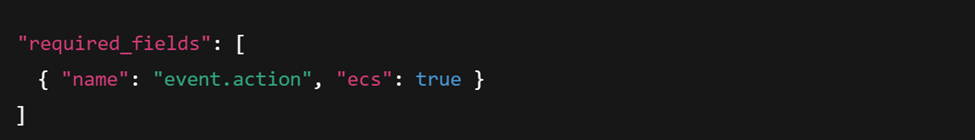

And required ECS fields:

What This Architecture Enables

From the structure alone, we can infer:

Rules are saved objects managed by Kibana
Upgrades use a three-way merge system
Field-level diffing prevents destructive overwrites
Local customizations are preserved
Rule behavior is type-driven
Detection and investigation metadata are decoupled

Elastic Security is not just running queries – it’s managing detection-as-code with version control semantics.

Final Insight

The internal structure of a detection rule reveals Elastic Security’s core design philosophy:

Detection rules are versioned, mergeable, dependency-aware, and analyst-enriched content artifacts – not just saved searches.

Understanding this model provides:

Safer upgrade strategies
Better customization practices
Stronger detection engineering discipline

Most importantly, it gives you full control over your detection lifecycle.
