First of all, I’ll briefly explain what the “Tornado” in NetEye actually is.
Tornado is a Complex Event Processor that receives reports of events from data sources such as monitoring, email, and SNMP Traps, matches them against rules you’ve configured, and executes the actions associated with those rules, which can include sending notifications, logging to files, and annotating events in a time series graphing system like Grafana.
Recently I had a customer who wanted to display their incoming SNMP traps as alerts in NetEye monitoring, and at the same time store them in their Elastic database. (I should mention in advance that the SNMP traps reach the master monitoring system via various NetEye satellites.)
In order to be able to implement this requirement using the standard NetEye installation, I decided to use Tornado. First of all, I created a new data stream called snmptraps-archive in Kibana and gave the user “Tornado” write access to it.

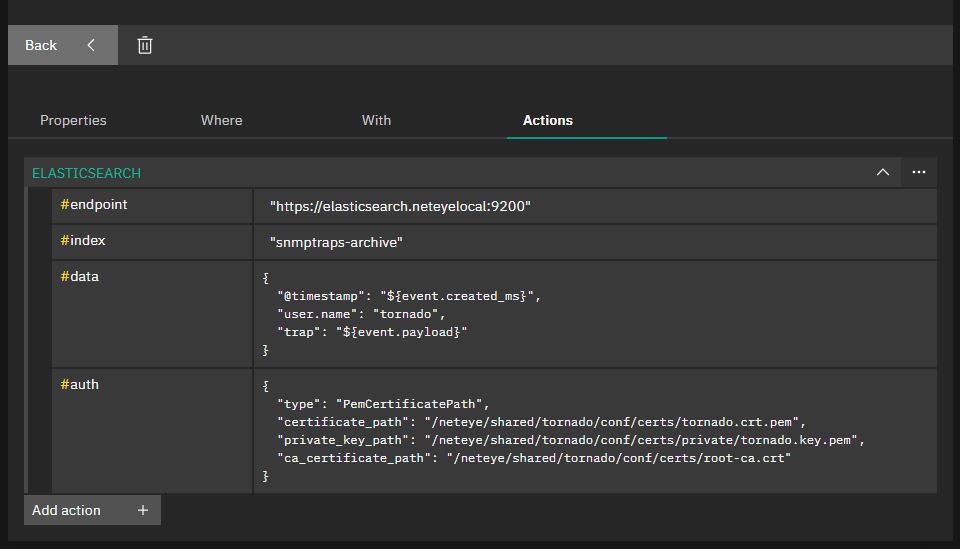

I then created an additional rule in Tornado under the ruleset snmptrap and set up the new Elasticsearch action. The action definition can be seen in the following screenshot:
Let me annotate what you’re seeing here.
#endpoint: The local Elasticsearch server must be specified as the endpoint.
#index: The index in which Tornado should store the SNMP traps is specified — here it’s the new snmptraps-archive data stream we defined above.
#data: Here the content of the document must be defined in Elastic, i.e. which fields are written to Elastic by the SNMP trap. In my example I added the @timestamp and a username so I know that this document was written by Tornado, and add the entire trap.
#auth: In this section we have to set up authentication with Elastic. Since the certificates for the Tornado user are already defined in NetEye, I use them to authenticate myself in Elastic.
As soon as this rule is activated, the traps are written to the desired index.
Have fun trying it out.
