In addition to the check_snmp_cpfw.pl where you can keep control of active connections, the Secure Virtual Network or the HA status I wanted to keep track of the basic hardware conditions of CP devices.
For this I’ve extended the check_snmp_environment.pl ( check_snmp_environment.pl.tar ) adding in addition to other platforms also the SNMP support for CheckPoint firewalls. The information covers now:
Temperature of CPU and System ( Motherboard )
Fan rotation speed ( Reads dynamically all available fans )
The check provides also the possibility to set thresholds for those values.

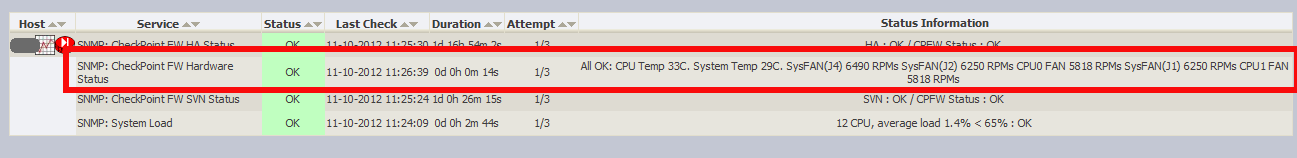

CheckPoint Hardware monitoring output
The provided perfdata:

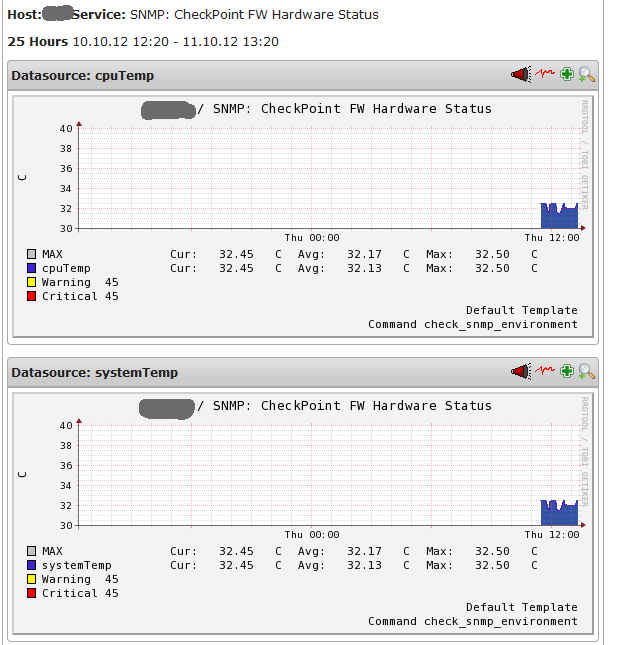

Perfdata of CPU and System Temperature

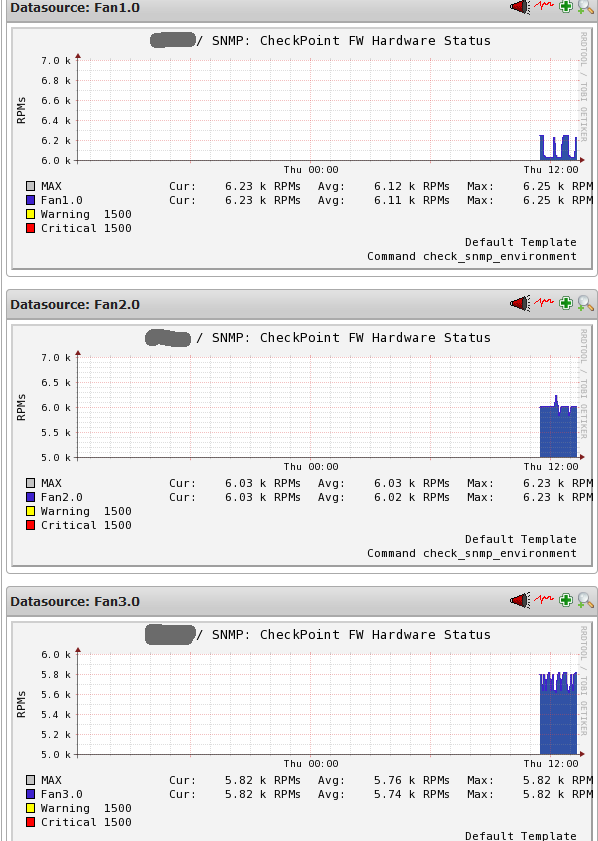

Perfdata of the fans
In total this check supports now those Hardware:
cisco : All Cisco equipements : voltage,temp,fan,power supply (will try to check everything in the env mib)
nokia : Nokia IP platforms : fan and power supply
cpfw : CheckPoint Firewal: fans, temperature
bc : BlueCoat platforms : fans, power supply, voltage, disks
iron : IronPort platforms : fans, power supply, temp
foundry : Foundry Network platforms : power supply, temp
linux : Net-SNMP with LM-SENSORS : temp, fan, volt, misc
After my graduation in Applied Computer Science at the Free University of Bolzano I decided to start my professional career outside the province. With a bit of good timing and good luck I went into the booming IT-Dept. of Geox in the shoe district of Montebelluna, where I realized how a big IT infrastructure has to grow and adapt to quickly changing requirements. During this experience I had also the nice possibility to travel the world, while setting up the various production and retail areas of this company. Arrived at Würth Phoenix I started developing on our monitoring solution NetEye. Today, in my position as Consulting an Project Manager I am continuously heading to implement our solutions to meet the expectation of your enterprise customers.
Author
Patrick Zambelli
After my graduation in Applied Computer Science at the Free University of Bolzano I decided to start my professional career outside the province. With a bit of good timing and good luck I went into the booming IT-Dept. of Geox in the shoe district of Montebelluna, where I realized how a big IT infrastructure has to grow and adapt to quickly changing requirements. During this experience I had also the nice possibility to travel the world, while setting up the various production and retail areas of this company. Arrived at Würth Phoenix I started developing on our monitoring solution NetEye. Today, in my position as Consulting an Project Manager I am continuously heading to implement our solutions to meet the expectation of your enterprise customers.
With the end of 2021 we've release the first version of the NetEye Extension Packs project that helps customers and consultants on their monitoring implementations and more (see Introducing NetEye Extension Packs | www.neteye-blog.com for details). Now our focus is Read More
Sometimes you'd just really like to have an overview of what happens to the Events that flow through Tornado. Where do they come from? Did they get stuck somewhere in the Collectors or in Tornado? Which Tornado Actions did they Read More
When I'm running a service which processes a lot of data, sooner or later I start to wonder: what is the service doing? What data is it processing? This also applies to our event processor Tornado. For the Tornado Engine, Read More
Together with the NetEye 4.21 release, we also released NEP (an abbreviation that stands for NetEye Extension Packs) and now it’s possible to install it using the RPM present in the Official NetEye Repositories. If you are interested in this Read More
SOAP is a messaging protocol for exchanging information based on XML over the network. SOAP messages are written in XML, which is why they are platform- and language-independent. A lot of enterprises have such webservices that return useful data for Read More
2 Replies to “CheckPoint Firewall Hardware Monitoring”
The OIDs are making use of a MIB – base that is provided if CheckPoint Hardware ist used. The check is not intended for CheckPoint software on third party hardware i.e. SPLAT.
To test if this check would work make an SNMPwalk for the enterprise OID: 1.3.6.1.4.1.2620
Hi, not working for CheckPoint
The OIDs are making use of a MIB – base that is provided if CheckPoint Hardware ist used. The check is not intended for CheckPoint software on third party hardware i.e. SPLAT.
To test if this check would work make an SNMPwalk for the enterprise OID: 1.3.6.1.4.1.2620
