SLA Reporting on a Business Process
Scenario
NetEye 4 is a comprehensive monitoring platform which natively supports Business Processes.
A Business Process is an abstract view of a customer’s business from the Application point of view. Usually, it’s a collection of Icinga 2 checks aggregated by “AND, OR, At Least” logic in order to monitor whether a Business Application is really available to the users, typically whether all its necessary components are up.
Customers always ask me for a Service Level of their business, so below I’ll show you an example of how to define a customer SLM (Service-Level Management) target and generate a related historical report.
How to Define an SLM
An SLM in NetEye is usually bound to Business Processes.
Start at the NetEye SLM menu:

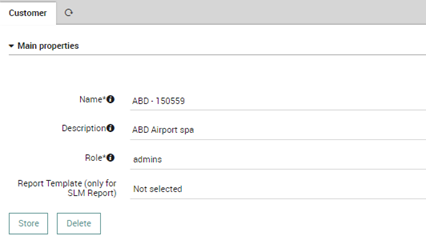

First of all, define a Customer:
Then choose one of the existing SLA types, or define a new one.
Each SLA type has the Operational time and a Calculation Period (daily or monthly) of the Availability %.
If checked, the Downtime box excludes planned downtimes from the calculations.

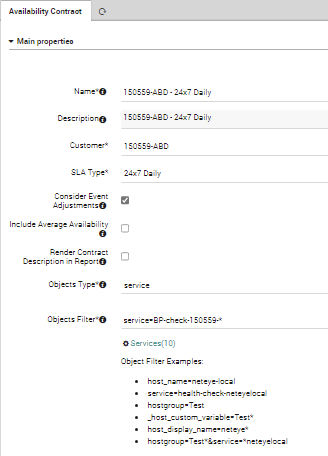

Third, define an Availability Contract, which binds the Customer with an SLA Type and an Object Type.
It’s useful to refer to the Services created on the dummy host which map each customer’s Business Process (see my earlier blog https://www.neteye-blog.com/2023/12/monitoring-a-business-process/ ).
If all the Business Process services have the same name prefix, we can use the prefix as a pattern:
In this example we refer to the customer, the SLA Type “24×7 Daily” and the service with filter prefix pattern “BP-check-10559-*” (it will reference 10 services in this example, 10 different Business Processes).
Create a Report of the SLM
The SLM needs to be visualized: the best way is to create a NetEye Report:

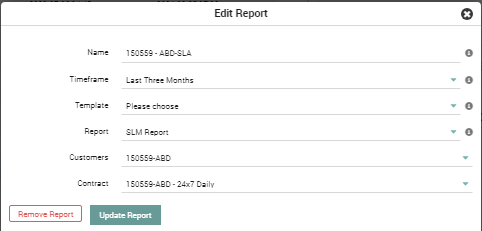

Just create a new report with a desired time frame (1 month, 3 months, ….), Report type “SLM Report”, with Customer and Contract as previously defined under the SLM menu:

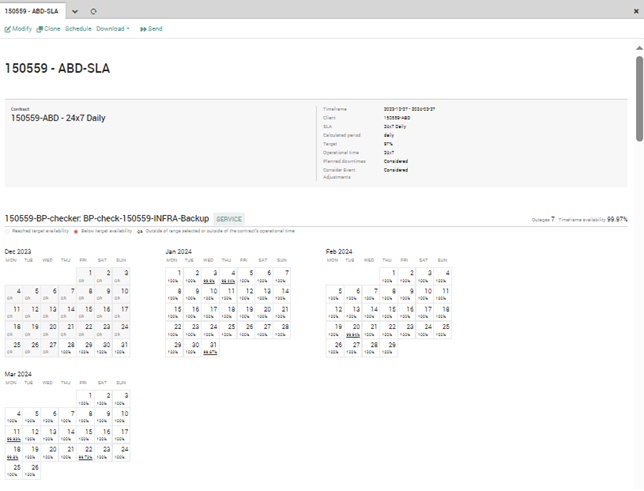

It will produce a report of each Business Process which can be exported as a PDF or sent by email:
