Neu im NetEye Reporting: Darstellung von Top Flow Statistiken
Mit der letzten Version des NetEye Reportings (2.1), welches mit NetEye 3.5 zur Verfügung steht, haben wir zwei neue, sehr interessante Features in Bezug auf die Analyse von NetFlow Statistiken implementiert.
Für all jene, die mit NetFlow nicht so vertraut sind: NetFlow ist eine Technik, welche es Ihnen erlaubt IP-Datenströme auf Ihrer nBox zu erfassen. NetFlow ist ein passives Messverfahren, d.h. der Verkehr wird beobachtet aber nicht beeinflusst. Sie können Tools wie z.B. Nfdump verwendet um Datenströme im Netzwerk zu exportieren und zu analysieren.
Doch nun zu den Neuerung an unserem Reporting Tool:
Darstellung der Top Flow Statistiken eines bestimmten Zeitraums
Darstellung der Top In/Out Flows eines bestimmten Zeitraums
Beide Features können Sie im Bearbeitungs-Modus Ihrer Reports finden und direkt von dort aus hinzufügen.

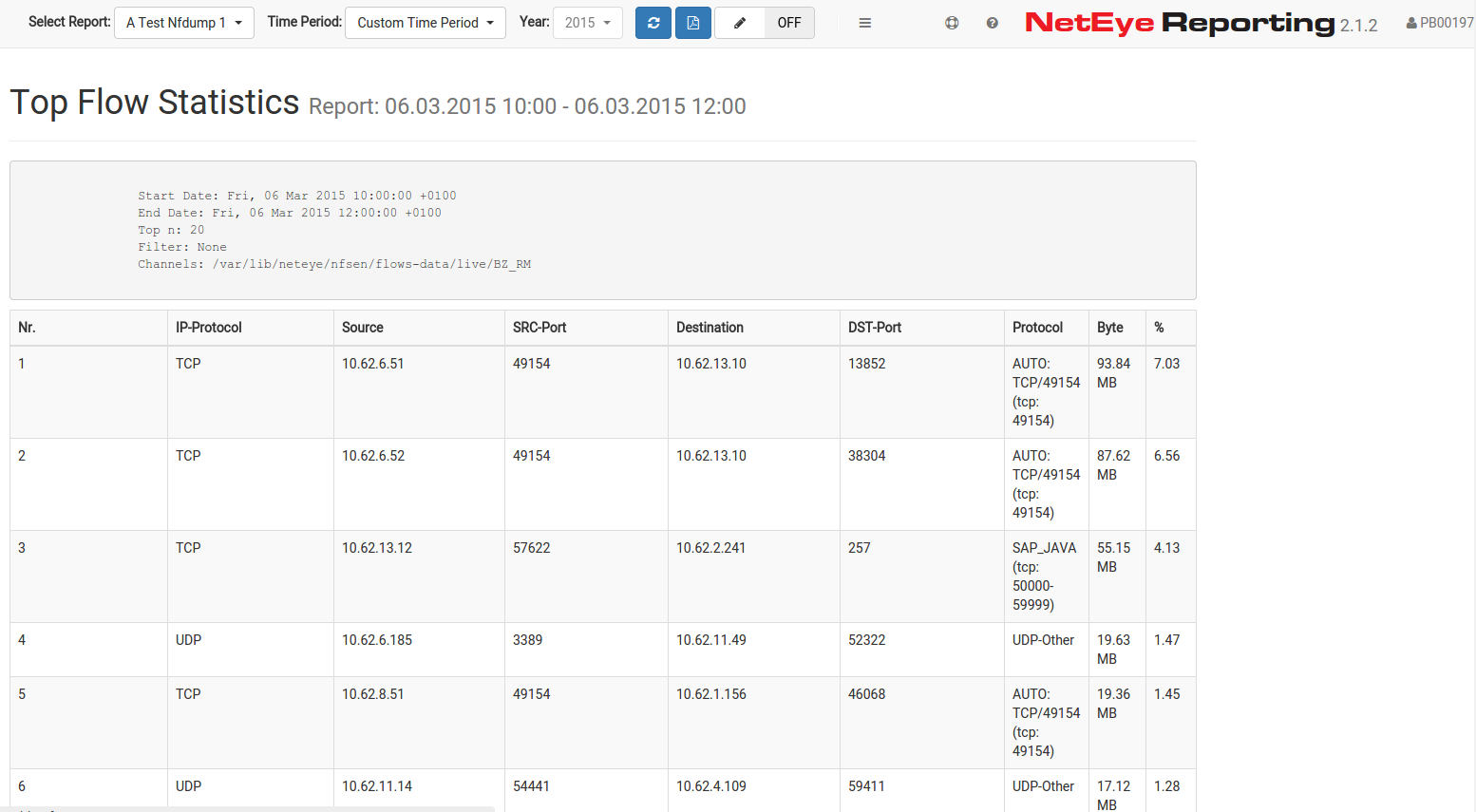

Die Top Flow Statistik zeigt Ihnen die größten Datenströme eines bestimmten Zeitraums, absteigend geordnet nach Bytes. Zusätzlich zur Größe des Datenstroms, werden folgende Informationen abgebildet:
der Protokoll-Typ,
die Quell- und Ziel-IP-Adresse
die Quell- und Ziel-IP-Ports
Dieses Feature ermöglicht Ihnen also, die größten Datenströme, welche den Netzwerk-Traffik am meisten beeinflussen, zu identifizieren und zu analysieren.
Die Top In/Out Flow Section hingegen erlaubt Ihnen die Analyse der Datenströme aggregiert nach Protokoll-Typ und sortiert nach Byte-Prozentsatz.

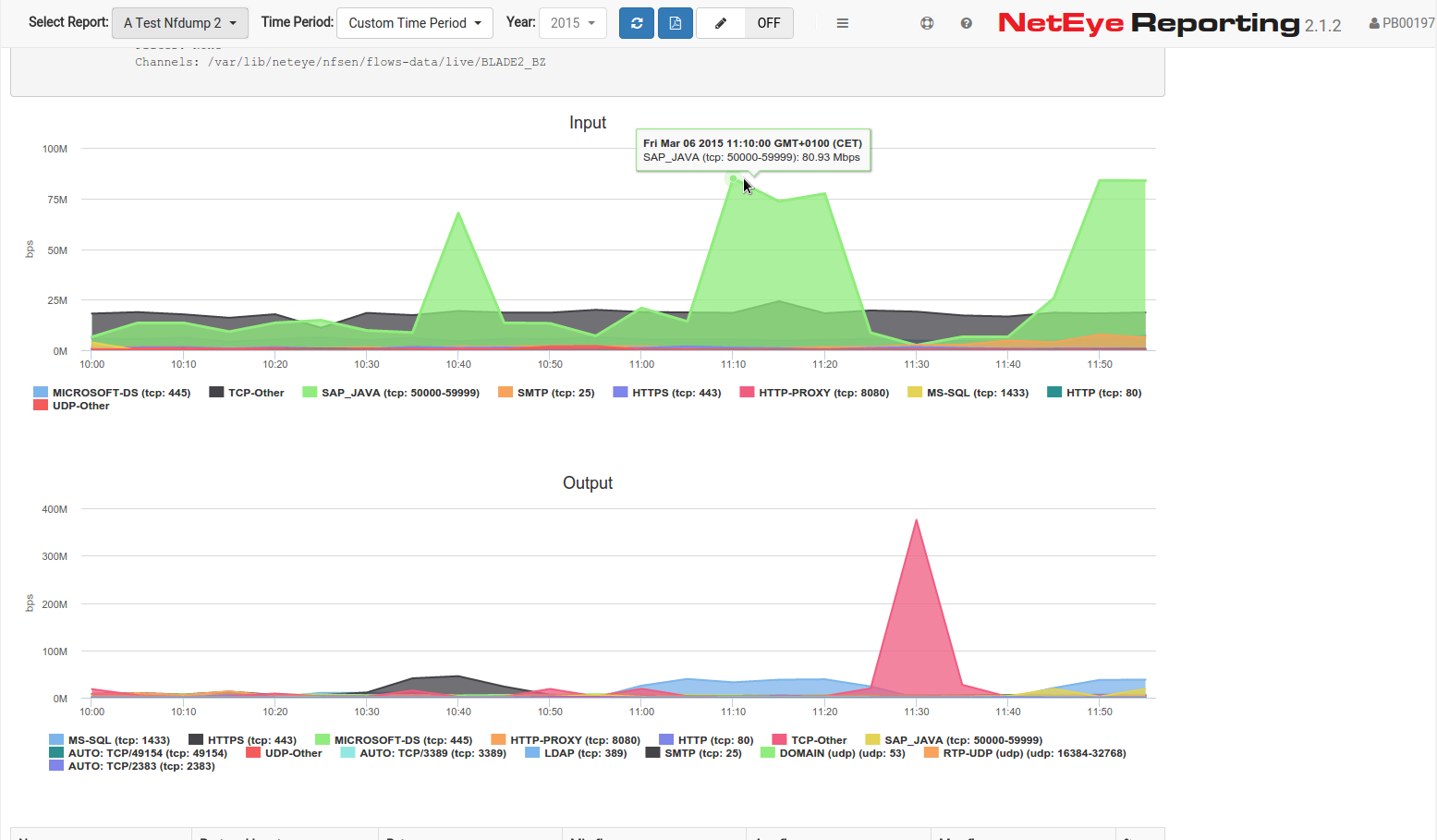

Hier werden zwei Liniendiagramme abgebildet, eines visualisiert die eingehenden Datenströme, eines die ausgehenden Datenströme.

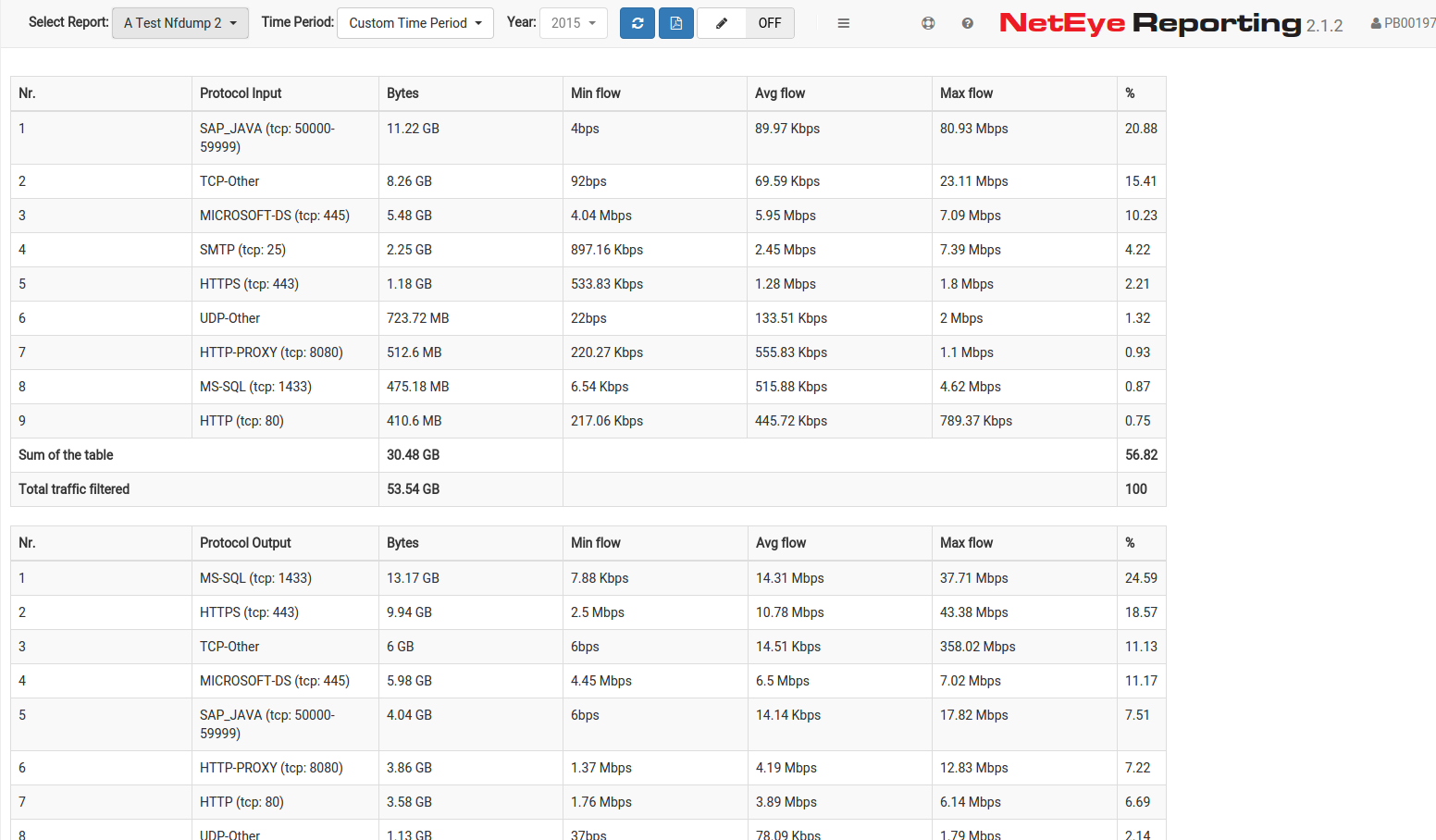

Zusätzlich werden auch die Details der zusammengefassten Ströme in zwei Tabellen (Inflow und Outflow) neben dem Diagramm (sortiert nach dem Byte-Prozentsatz) dargestellt.

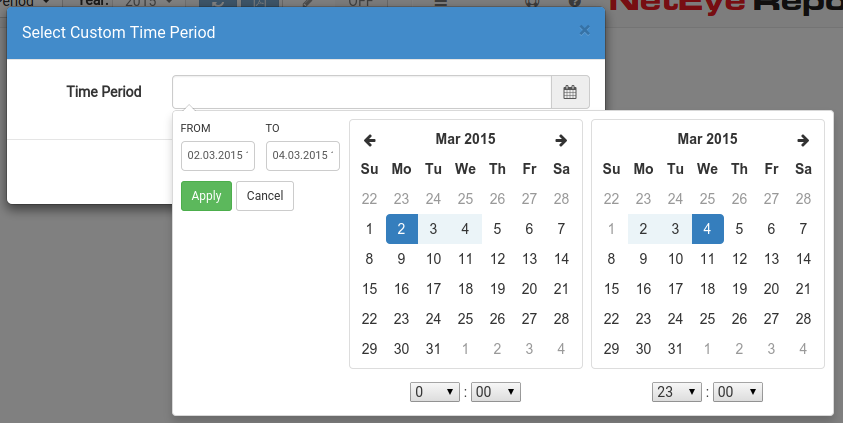

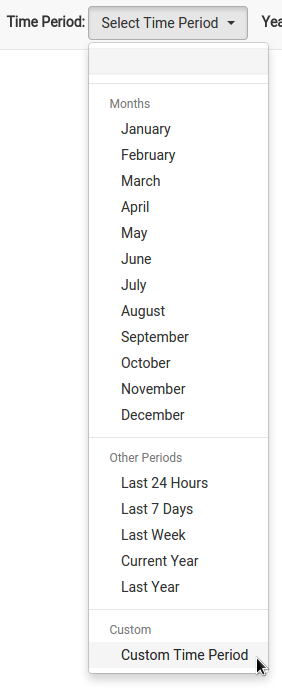

Selbstverständlich können Sie den Zeitraum für welchen die Datenströme angezeigt werden sollen, nach Belieben verändern. Möglichkeiten sind beispeilsweise die vergangenen 24 Stunden, die vergangenen 7 Tage, ein spezieller Monat aber es gibt auch die Custom Time Period mit welcher Sie Start- und Enddatum frei wählen können.

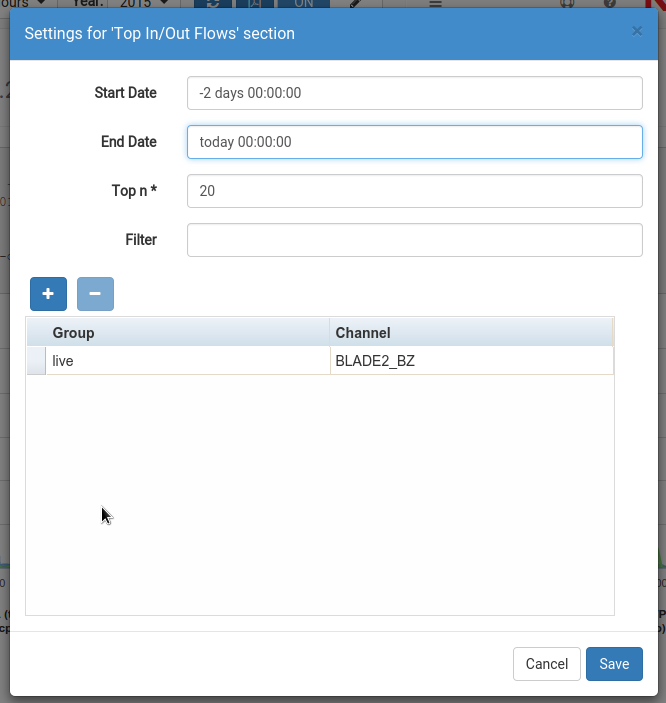

Oder Sie wählen den Zeitraum direkt in den Einstellungen der neuen Sektionen, hier können nahezu alle gängigen Formate verwendet werden.
