Migration from Alyvix Server to Alyvix Service
Beginning with NetEye version 4.26, Alyvix has been fully integrated into NetEye.
Currently Alyvix within NetEye is implemented as the neteye-alyvix module, and is part of our Application Performance Monitoring (APM) world. We have Elastic with all the functionality of traditional APM, and then for synthetic monitoring we have Alyvix.
In the past few weeks I had the opportunity to help a customer migrate an on-premises NetEye 4 production system from Alyvix Server to the new Alyvix Service module. This migration consisted of the following procedural steps:
- Stop the Alyvix Server services in NetEye
- Back up the Alyvix Server configuration
- Uninstall Alyvix Server’s Windows service
- Update the already installed Alyvix Core
- Install and configure the new Alyvix Service in Windows
- Enable and configure the Alyvix module within NetEye (neteye-alyvix)
- Configure the NEP package for Alyvix and NetEye
The first steps are simple: just save the Alyvix Server folder contained in C:\Program Files\Alyvix and then from the windows control panel, remove the service.
Now update to the most recent version of Alyvix Core from a command prompt as administrator with the following command:
pip install --upgrade alyvix
Once this is done, you can proceed to install the new software package.
We first proceed by checking the configuration parameters as documented in the Alyvix Service user guide. On the NetEye side, when you have a license for the module you can install Alyvix Module. At this point, you generate certificates that allow for secure conversation between NetEye and Alyvix Service, and that thus allows Alyvix Service to send metrics to NetEye. Within NetEye you can then view these metrics in interactive graphs on ITOA, with the NEP package providing elements like default dashboards.

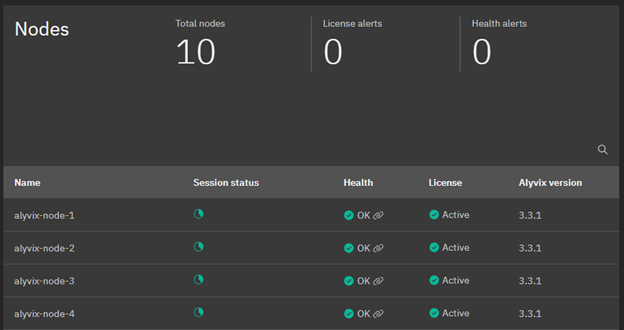

Next, you copy the certificates to the paths required by Alyvix and start the Windows service. You can then configure the Windows server nodes hosting Alyvix Service instances in NetEye’s Director by following the guide. After deployment, in the Alyvix module GUI you’ll see the information for the node you just deployed:
After that, by following the guide you can go on to migrate the configurations from the old Alyvix Server, such as however many minutes the test case should run, with what resolution, and which users will use the Alyvix bot.

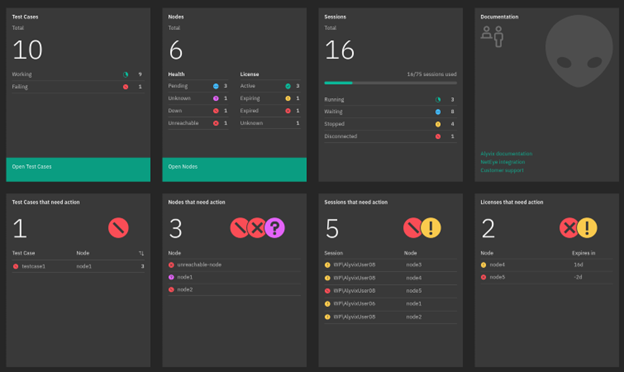

Here’s the dashboard with all the various features the product supports:

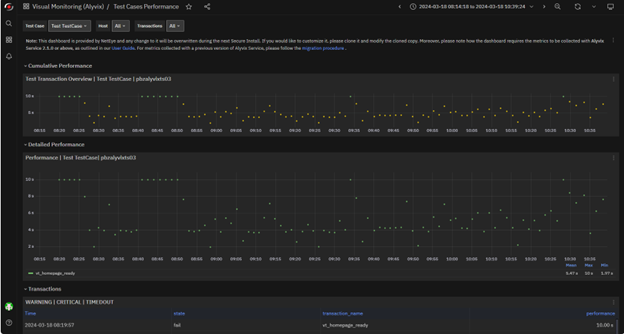

You’ll also have the following dashboard ready to use on the ITOA side:
Although it may seem time-consuming to carry out all these steps, it took me just half a day to do this task for an Alyvix server with a few active test cases, including getting the NEPs installed and running. If you don’t have the NEPs installed and running then it may take a little longer.
Already in the final months of 2023, an article on this subject was published on the official Alyvix website.
I think the time has come for customers who have Alyvix Server to use the new integration with all the new features, as well as those to be released in the coming months! Enjoy Alyvix!
