With Elastic Observability we can create alerts on all data we collect, such as logs, metrics, application services and synthetic monitoring. However, NetEye represents the main operational console from which to monitor the entire infrastructure.
By sending alarms from Elastic Observability to NetEye via Tornado, we can also bring this information into the NetEye console, providing a more centralized view of relevant events.
This approach improves operational visibility and makes it easier to correlate alarms generated in Elastic with the rest of the information already present in NetEye.
To show this in practice, we’ll look in this article at a practical integration example using a Synthetic Monitoring alarm generated in Elastic Observability and sent to NetEye via Tornado.
Create a Tornado Webhook
Go to the /neteye/shared/tornado_webhook_collector/conf/webhooks folder and create a file called nc_synthetics_alerts.json. Replace TOKEN_VALUE with this custom token:
{
"id": "nc_synthetics_alerts",
"token": "TOKEN_VALUE",
"collector_config": {
"event_type": "nc_synthetics_alerts",
"payload": {
"data": "${@}"
}
}
}Create a Kibana Webhook Connector

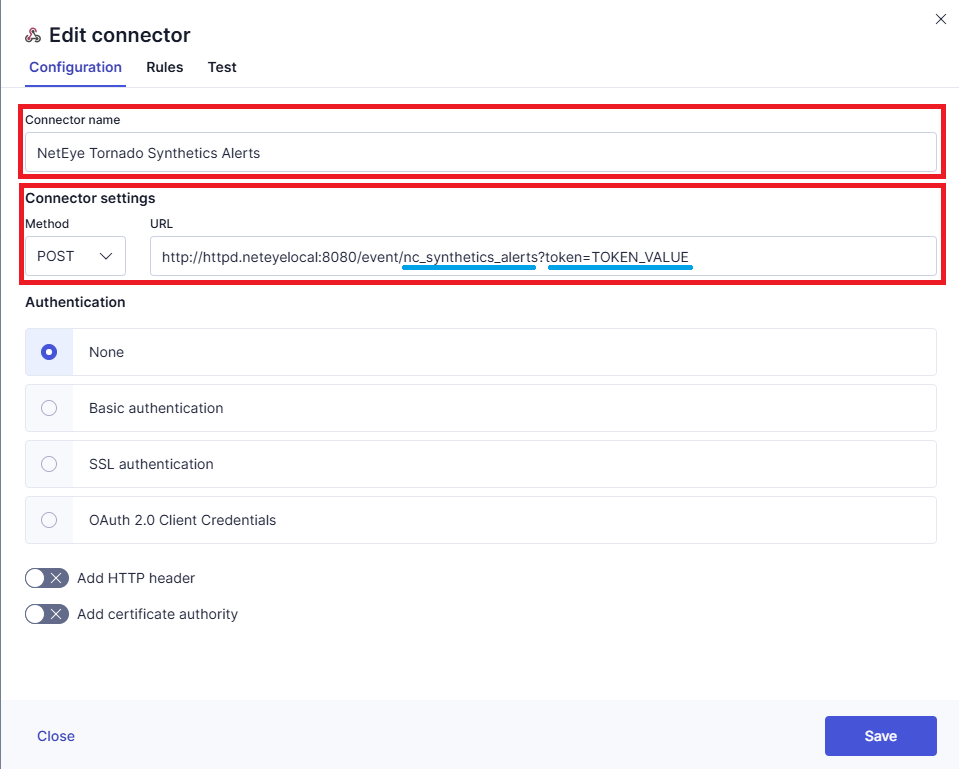

From the Kibana main menu go to the Stack Management section, then to Connectors and create a new connector:
Create a Rule on a Synthetic Monitor

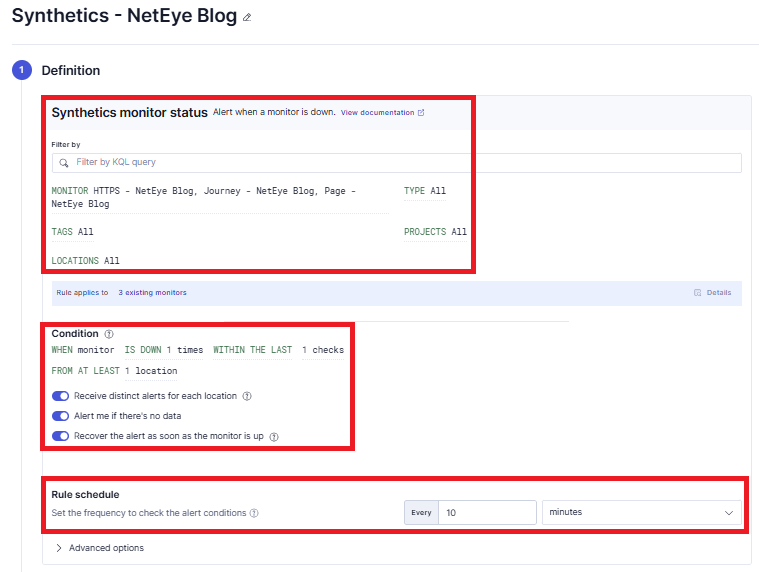

From the Kibana main menu go to Observability → Alerts → Manage Rules → Create rule → Synthetics monitor status and choose the list of monitors to be sent to NetEye, the rule condition and the schedule:

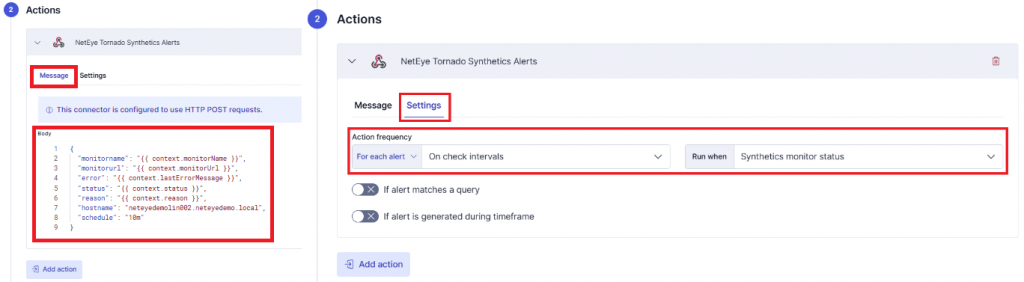

Set the actions the rule should do, then choose the Tornado connector you made earlier and set Message and Settings:

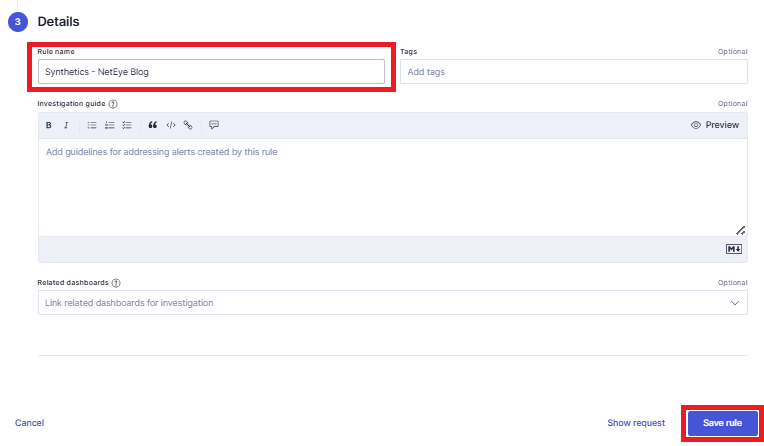

Choose the name of the rule and save it:
Create a Tornado Rule

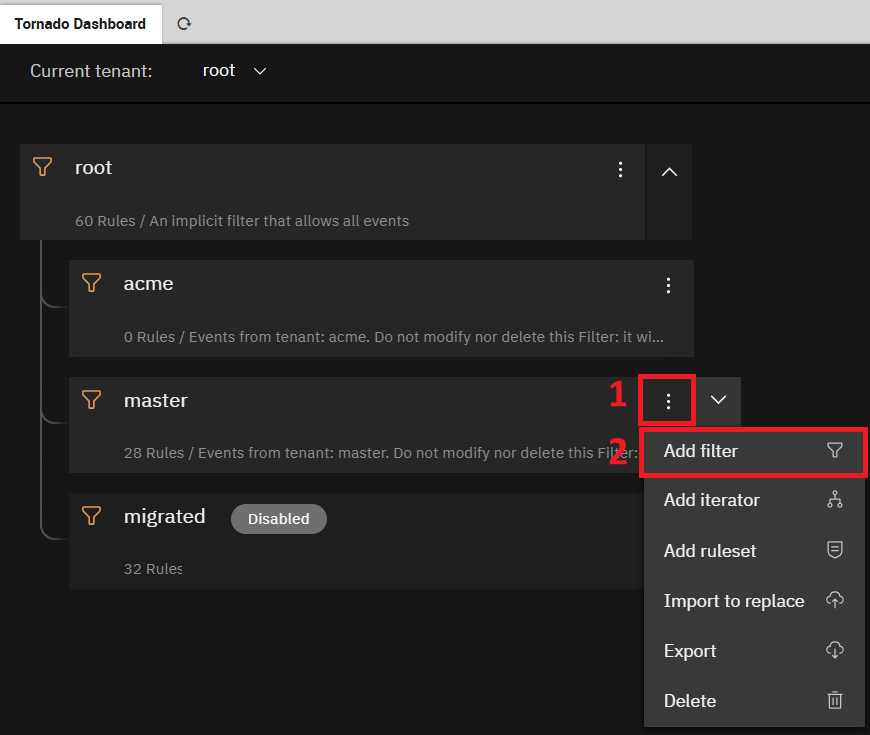

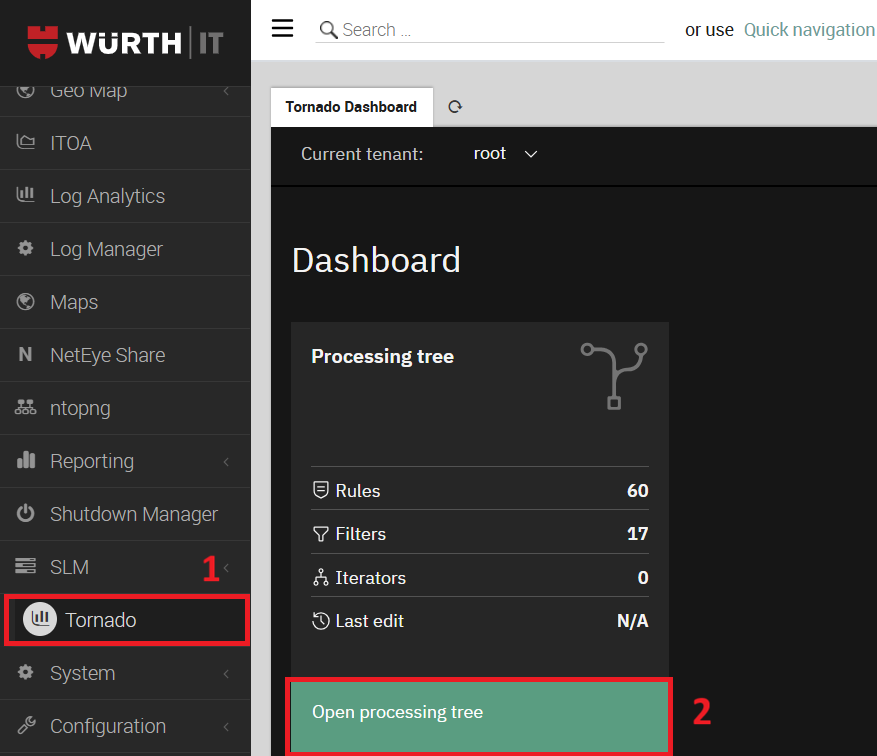

Now log in to your NetEye user interface and go to the Tornado section. Follow these steps to begin configuration:

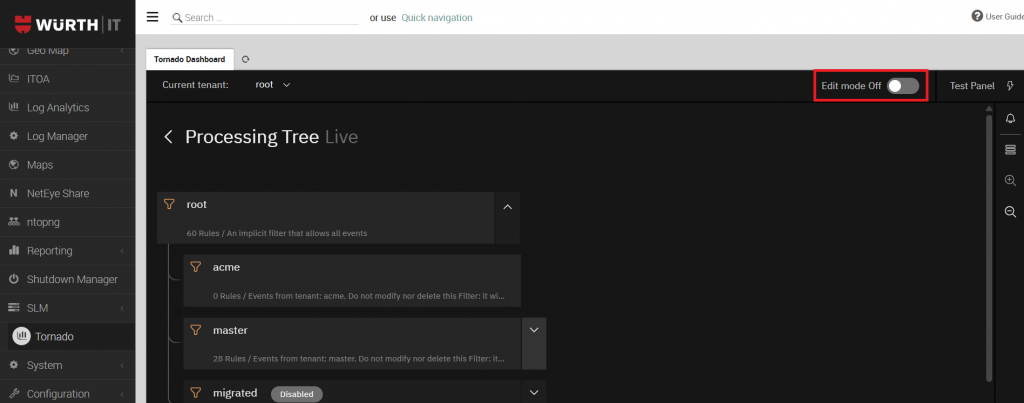

We’re now in Edit mode and we can create a new rule inside master:

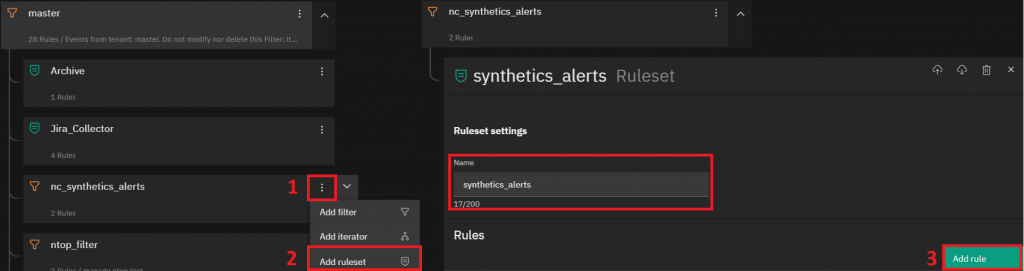

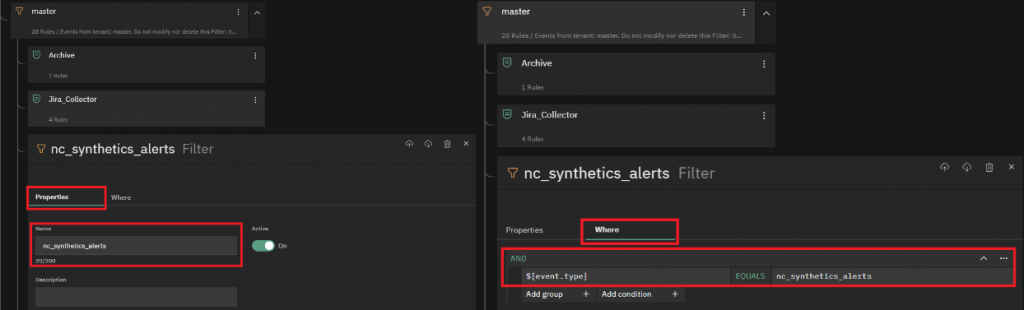

Now let’s create two rulesets within the filter:
- The hostname field is present in the body that comes from Kibana
- The hostname field is not present

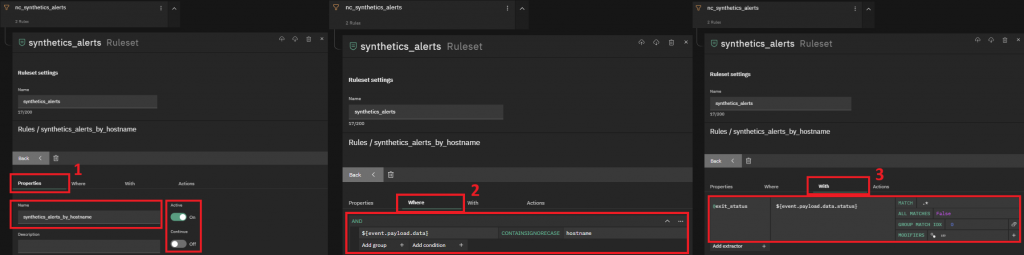

First ruleset

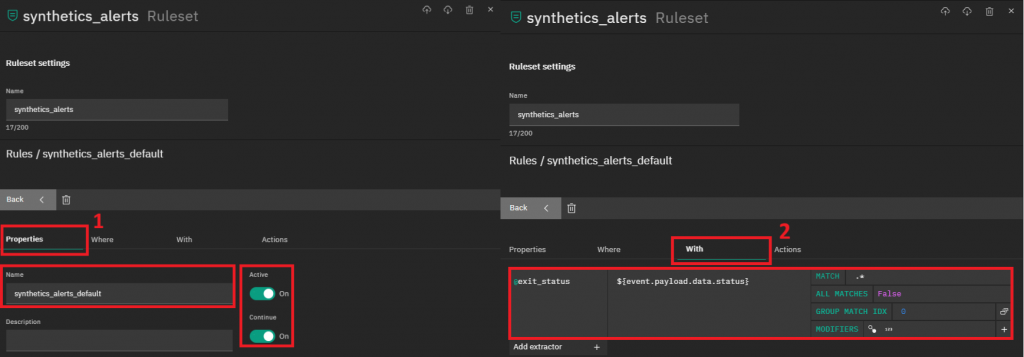

Second ruleset

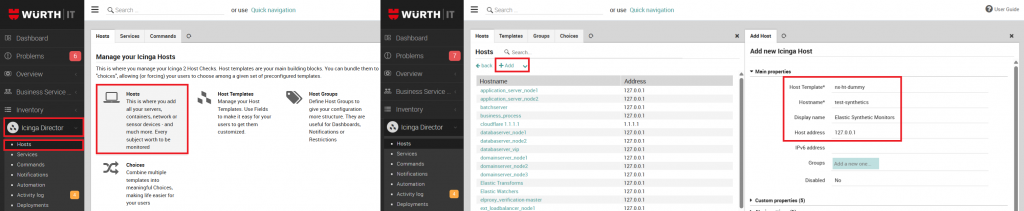

Create synthetic test host on NetEye for alarms without a configured host name:

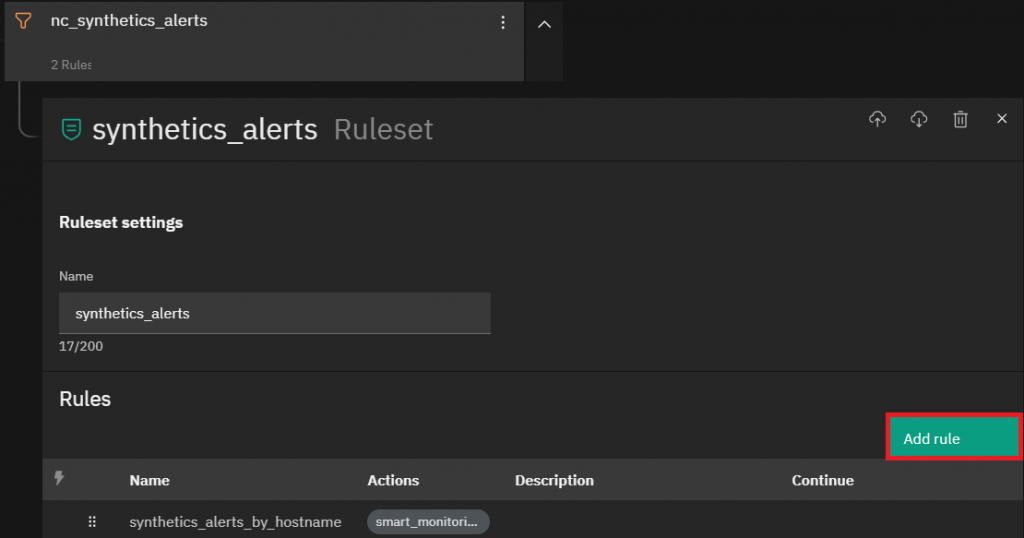

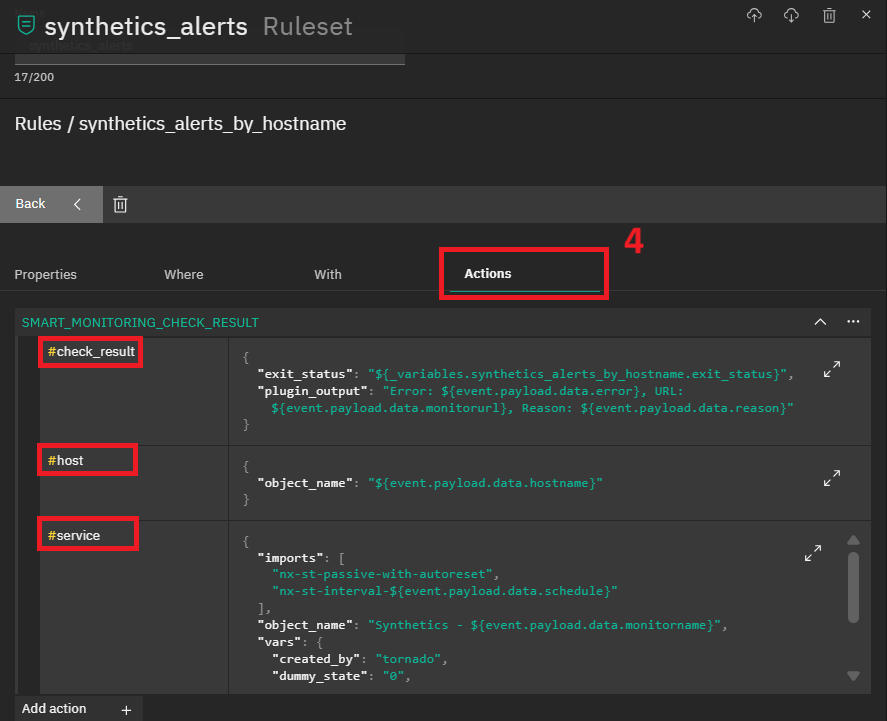

Create rule:

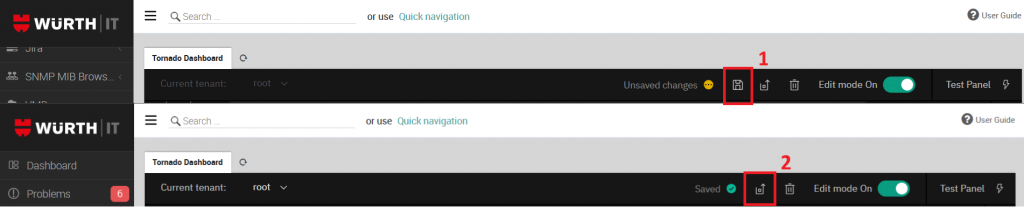

Save and deploy your changes:
Conclusion
This is a simple yet effective integration that brings the value of alarms generated in Elastic Observability to NetEye, providing an even more comprehensive operational view.
This way, information that would otherwise remain confined to the observability platform can be made immediately available within NetEye’s operational context.
