For the capacity management it is of interest to monitor the development of performance values over a longer time distance within graphs.
Today we will offer the community a collection of templates to monitor the load of a Microsoft Exchange 2007 server infrastructure.
This template is made up of an data import file for Cacti version 0.8.x importable directly from the web front-end. The other file ( exchange07.pl ) has to be placed in your cacti home in the folder scripts/
Advice: Don’t forget to edit the path to your local check_nt binary and the path for the comunication!

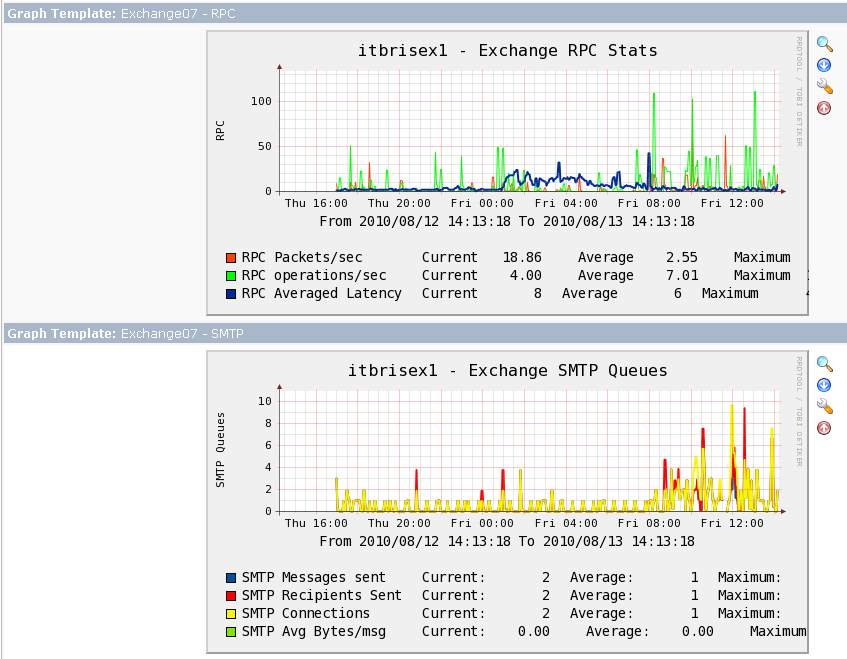

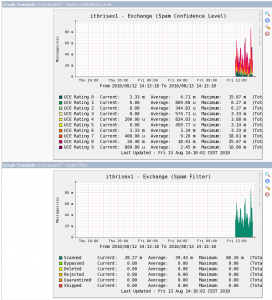

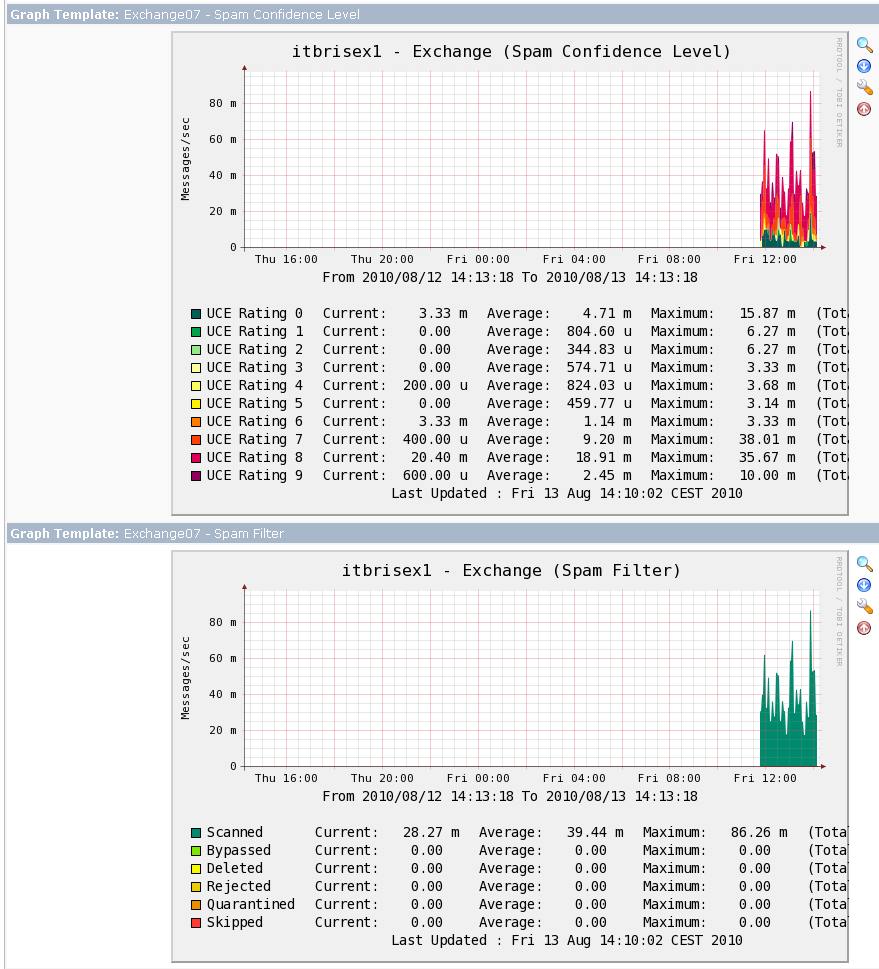

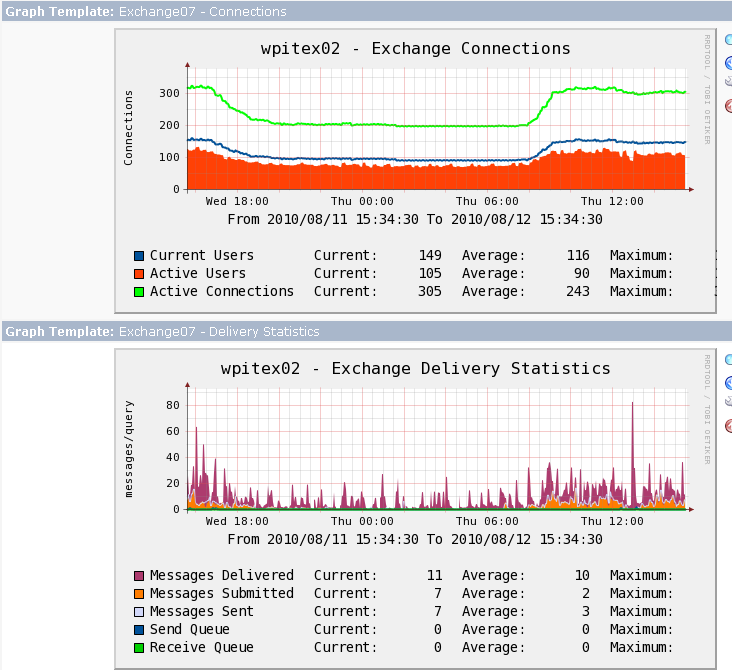

Graphs for number of connections and mail exchange statistics:Graphs for RPC statistics and SMTP queues:Graphs for the optional SPAM filter service activity:Download:
Cacti importable host “Exchange 2007” template and script: Exchange07_CactiTempl_01
Import the XML vai Import feature from webCopy the Perl script to ./cacti/scripts/exchange07.pl
