30. 05. 2019 Franco Federico Log Management, NetEye

Beats and NetEye 4

NetEye 4 is composed of various modules, such as the NetEye 4 Log Manager that houses Elastic Stack with Search Guard. Our vision for the future of the NetEye 4 Log Manager is shown in the following diagram:

Here you can see the various modules and technologies. For instance, you can see that we have included Beats (I talked about Beats in another blog post where I described how to use Icingabeat). But given its importance, I think Beats and its role within NetEye needs to be elaborated further.

Beats are an ecosystem of multiple lightweight components that send information to our NetEye 4 Log Manager. There are officially supported beats, and then community beats like Icingabeat. Here I’d like to talk in more detail about one of these community beats called Winlogbeat. As with all beats, Winlogbeat has just one task:  to ship Windows event logs to Elasticsearch or Logstash. You can install it as a Windows service.

Winlogbeat reads from one or more event logs using Windows APIs, filters the events based on user-configured criteria, and then sends the event data to whatever outputs you have configured (in our case, Elasticsearch or Logstash). Winlogbeat monitors the event logs so that it can send new event data in a timely manner. The read position within each event log is also persisted on disk to allow Winlogbeat to resume after restarts.

Winlogbeat can capture event data from any event logs present on your Windows system. For example, you can capture events such as:

  • Application events
  • Hardware events
  • Security events
  • System events

Winlogbeat is an Elastic Beat based on the open source libbeat framework that permits anyone in the community to create their own Beat.  Let’s see how you can use it.

I first selected a Windows Server to install Winlogbeat on and downloaded a copy compatible with the version of Elastic Stack in NetEye 4 Log Manager. I then installed it on my server and set up Winlogbeat by configuring its YAML configuration file. There I configured output to Logstash instead of Elasticsearch in order to retain the possibility to enrich or transform the data in the future, and selected the security event to send to my NetEye 4 Log Manager.

In NetEye 4 Log Manager I set up the firewall to only receive events from my Windows Server and Logstash, including the input and output ports for Winlogbeat.

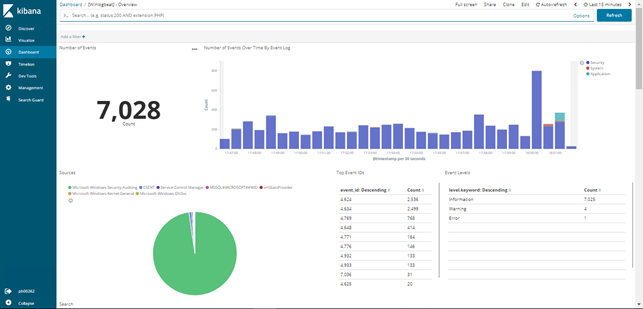

Finally, I started the service in Windows Server and verified the Winlogbeat log in order to check that Winlogbeat was in fact sending events. It turns out it’s very fast: in just a few seconds, Winlogbeat sent thousands of events. In Kibana I set up the index winlogbeat-*, loaded the sample Winlogbeat dashboard, and voilà!

Typically, Beats are deployed on the edge of the network where deployments can easily span into the thousands. At this scale, monitoring and management become two key pillars of operational excellence. For instance, in Elastic Stack 6.2 there are monitoring Beats that provide deep visibility into the health and status of an entire deployment.

In Elastic Stack 6.5, Beats were introduced into central management, providing a centralized Kibana UI for managing and updating Beats configurations. This feature aims to drastically reduce users’ reliance on external configuration management tools like Ansible, Puppet, or Chef, enabling Beats configuration changes to be managed directly within the Elastic Stack (namely Kibana and Elasticsearch) and rolled out automatically to entire fleets of Beats.

Beats monitoring and Beats central management are in the X-Pack module of Elastic Stack. In my next blog, I’ll explore other Beats and how to correlate them.
