RomHack CTF 2021: table of contents writeup

In Wuerth Phoenix, we recently introduced a security focused guild, and decided to attend our first security CTF (Capture The Flag) challenge: RomHack CTF 2021.

After panicking initially (there were really difficult challenges!) we stayed calm, and managed to solve the table of contents challenge in the ‘pwn’ category, that made our team finish at the 21st position (!!) out of over 800 teams.

As for most of the ‘pwn’ challenges, the program we had to exploit was provided as a compiled binary executable, but no glibc binary was provided. Often this means that you will need to leak multiple addresses from the GOT (Global Offset Table) in order to discover the remotely running glibc version to be able to exploit the vulnerability.

When running the exploitable binary, a menu is presented allowing to manage a library of books:

Figure 1: tableofcontents running in a terminal

First I analyzed the binary and studied the functions with ghidra. It stood out to me, that it was a C++ written program using OOP (Object Oriented Programming). There was a std::vector object of Book objects. When donating a new book to the library, the add function was called:

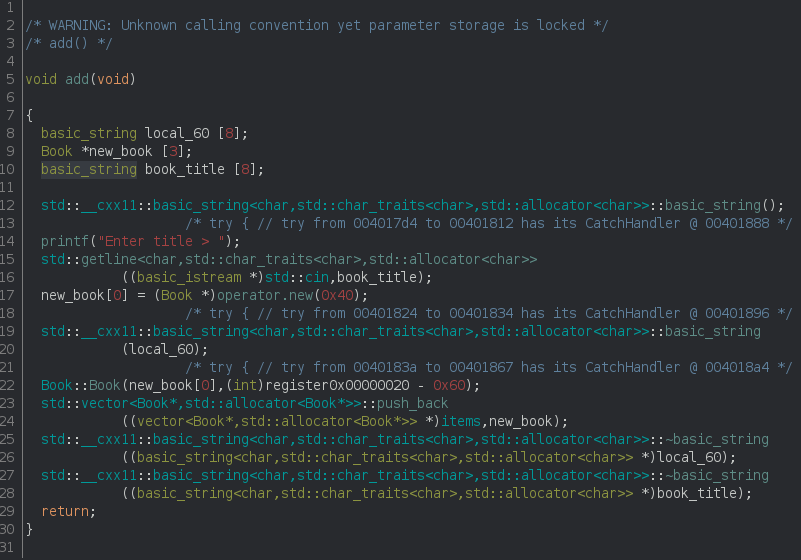

Figure 2: ghidra decompiled ‘add’ function

I clearly saw that first the title is asked (line 14), then the title is read from stdin (line 15), a new Book object is allocated (line 17) and then the new Book is pushed to a vector called items (line 23).

So what I understood was that the books are stored inside the items vector, and we can insert how many books we want.

After studying the other functions, I noticed the fetch function and saw a strange detail in the decompiled code: The first part (that I omitted) was about asking the index of the book, and the input was properly checked. But afterwards, if I chose to borrow the book:

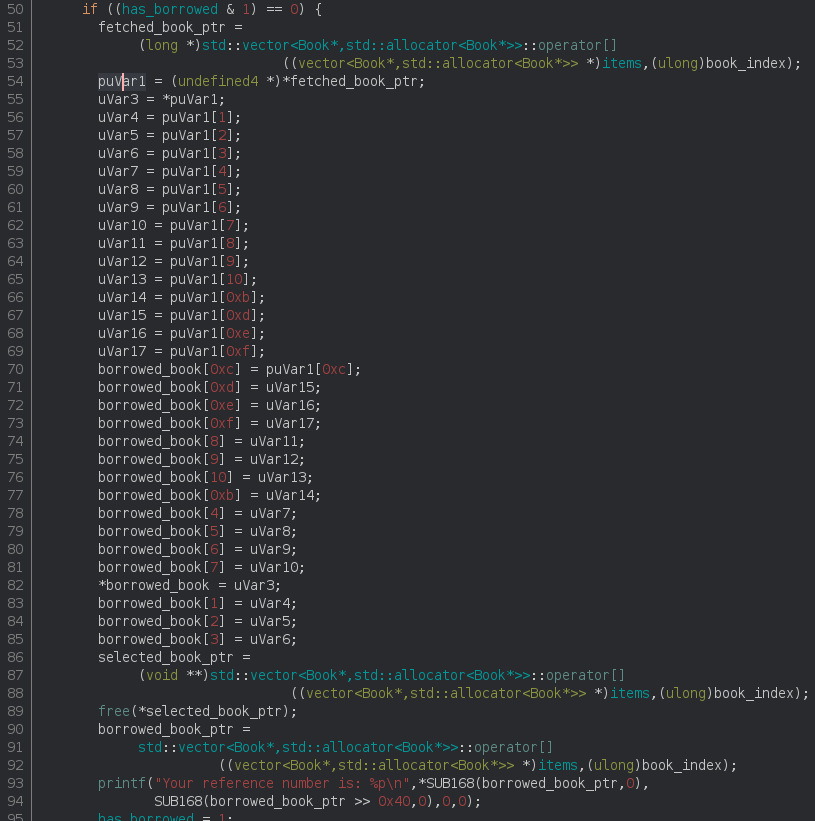

Figure 3: (part of) ghidra decompile of ‘fetch’ function

The book is shallow-copied to another book entry called ‘borrowed‘ (lines 54-85) then the book is freed from memory (line 89) and the memory address of the book object itself is printed back as a reference number of the book (line 93). And here we go! They did it wrong, they forgot to remove the book from the vector items and freed the book directly instead. That means that the book is still inside the vector and I can print it with the “list books” functionality.

I clearly had discovered a UAF (use after free) vulnerability here.

First I wanted to to leak a couple of GOT addresses in order to understand which libc version was running on the remote machine, and after knowing that, overwriting some GOT entries or the free_hook. For this reason, the first thing I focused on was getting a read what where primitive, which I could use for this scope.

Create a read what where primitive

So let’s give a look how the memory of the objects are organized:

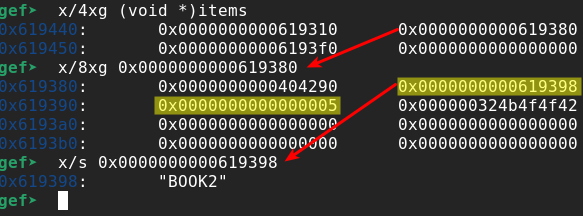

Figure 4: memory dump of a Book object

From Figure 4 I can see that items is a vector that contains the addresses of the Book objects. If I pick one book object (book with index 1 in the example) and dump it’s memory I immediately see that at offset +0x8 (8 bytes) there is a pointer to a string that contains the title of the book (“BOOK2” in the example), and in offset +0x10 (16 bytes) I find the length of the title (5 characters in the example). With the “list book” functionality all titles are printed to the screen:

Figure 5: list book functionality

That means that if I can artificially craft a book with a title pointer pointing to a memory location I want to dump, I can dump any number of bytes of any location. Let’s further analyze the functionalities the program offers us. Let’s give a closer look to the ‘add_page’ functionality inside the “fetch” function:

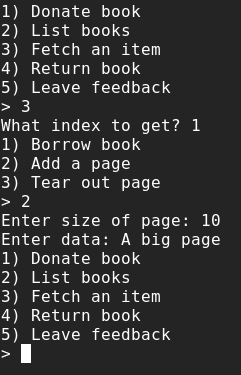

Figure 6: add page functionality

Looking at the analyzed binary in ghidra, I noticed that the add_page function was part of the Book object itself:

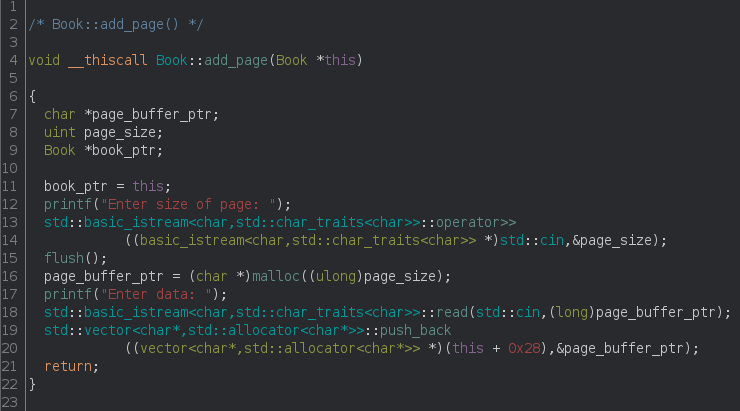

Figure 7: ghidra decompiled add_page function

I see that the size of the page is asked and read from standard input (line 12 and 13) and then this exact size is allocated in memory (line 16). Then the content of the page is asked (line 17) and read from stdin (line 18). At the end the new page is pushed to the vector of pages of this book (line 19).

With this functionality, I can allocate an arbitrary heap chunk in memory (choosing size and content). Great! I can fake our book now!
So let’s first understand how big a Book object is:

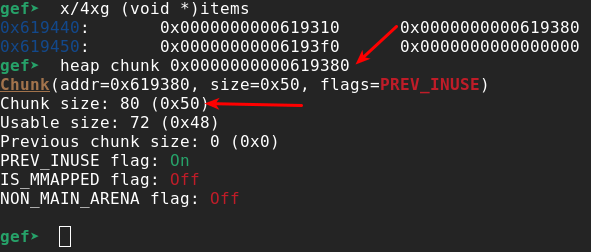

Figure 8: size of a Book chunk

using the gdb gef plugin helps us to analyze in an easy way the heap chunk allocated for a Book. So let’s again pick the same book as before taking the second entry (index nr. 1) of the items vector.

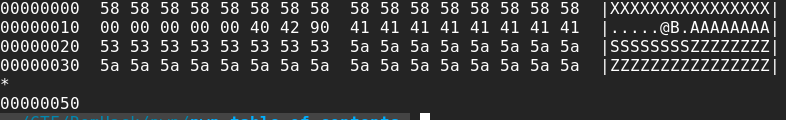

Figure 9: representation of a book object in memory

A Book object chunk has size 0x50 (80) bytes. Considering that 16 bytes are used by libc for referencing the allocated chunks (See ‘X’ chars in Figure 9) we need to allocate 0x40 (64) bytes. Remembering the dump of a Book object (see Figure 4.) we need to copy the first 8 bytes as any other Book object (to make it look like a legit Book object (see ‘0x404290’ bytes in Figure 9), then write the address (8 bytes, we have a 64bit executable) that points to the memory we want to leak (See ‘A’ chars in Figure 9), then the size of the dump we want to perform (8 bytes, we only want to leak one single address at a time, see ‘S’ chars in Figure 9), and finally other bytes only to fill up the entire allocation (40bytes remaining, see ‘Z’ chars in Figure 9).

So finally the steps are:

  1. Allocate/donate some books in order to start with a non-empty items vector
  2. Borrow a book (this will free the book and leak its address without removing it from the vector)
  3. Add a page to a book, with size 64 and content faking a book like described before
  4. Print the list of books. The faked book entry will leak the chosen memory content.
  5. Delete the page from the book. This way we can restart from step 3 how many times we want, for leaking more addresses.

For this purpose I wrote two functions; the setup_heap function executing Step 1 and Step 2 and the read_arbitrary_address doing Step 3, Step 4 and Step 5:

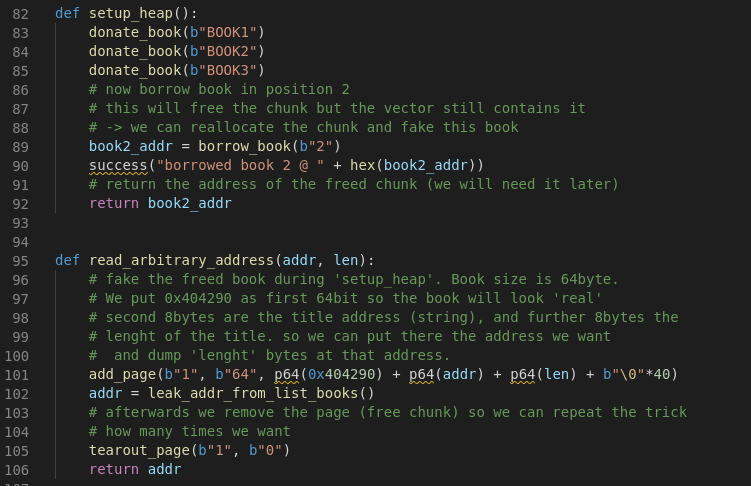

Figure 10: setup_heap and read_aribrary_address functions of exploit

we see that the got table entry for the ‘printf’ function is located at 0x605eb0 leaking the memory works flawlessly with this primitive:

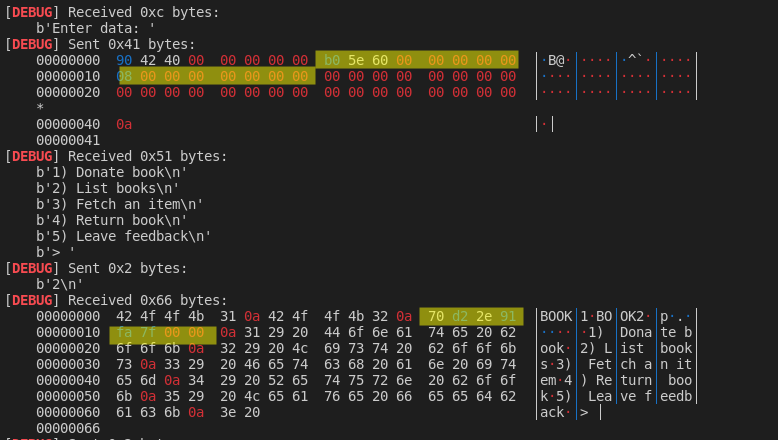

Figure 11: debug info of the exploit

We see the leaked memory instead the title of BOOK3, leaked bytes need to be inverted (because of little endianess of x86_64 architecture) and we can defeat ASLR (Address Space Layout Randomization) leaking the printf function location:

Figure 11: output of exploit duming printf address of libc

Creating a write what where primitive

Now that we have a read what where primitive we need to create a write what where one. Analyzing the ‘return book’ functionality we see that the reference number given after borrowing a book is answered back. Looking at the code we see that this number is threaten as a memory location directly and the content of the borrowed book is written back to this location:

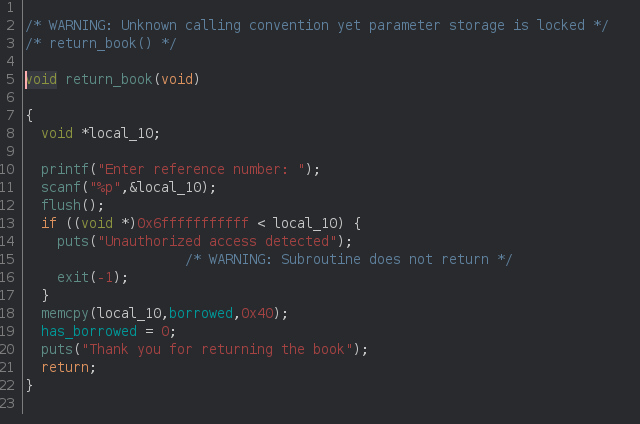

Figure 12: ghidra decompile of the return_book function

At line 11 an address is read from input and at line 18 the content of the borrowed book is copied 1:1 to this location. Looking at the dump of a Book object of Figure 4. we remember that we control part of this memory through the Book title we give when donating a book. In fact at offset Book+0x18 (24) we find the string of the title itself that we control. So by returning a book using the address we want to write to -0x18 (24) as a reference number will write the content of the title in this address.

The idea worked pretty well but trying to overwrite the free_hook pointer resulted on a strange memory access error (maybe a new security check built inside new glibc versions? I need to investigate this.).

It was pretty late in the evening and I got really frustrated and decided to go to sleep.

Throw away almost everything and get RCE

During the break I remembered that I saw the system function entry inside the GOT, that means that it is used somewhere inside our program! So searching for references to system I found immediately a perfectly crafted function that helped out for RCE (Remote Command Execution):

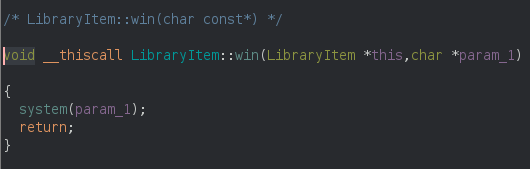

Figure 13: ghidra decompile of LibraryItem::win function

Looking at the constructor of the Book object I saw that it inherited from the LibraryItem object. This means that if I can overwrite a function pointer that has a string as first parameter with a content that I’m in control of I can achieve remote code execution! First I looked at the add_page function (see Figure 7) but it doesn’t accept any argument. But some minutes after I immediately realized that there is another feature we never explained, the feedback function that simply clears out a string with zeroes:

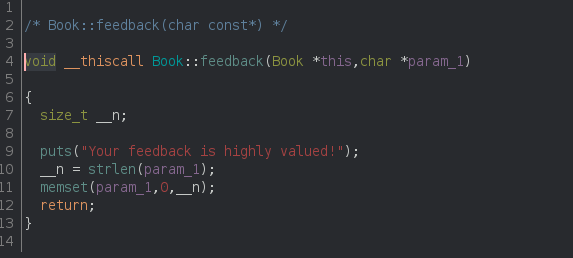

Figure 14: ghidra decompile of Book::feedback function

If you compare the parameters of Book::feedback and LibraryItem::win you will notice they are the same, and we can trigger the Book::feedback function through the leave_feedback function:

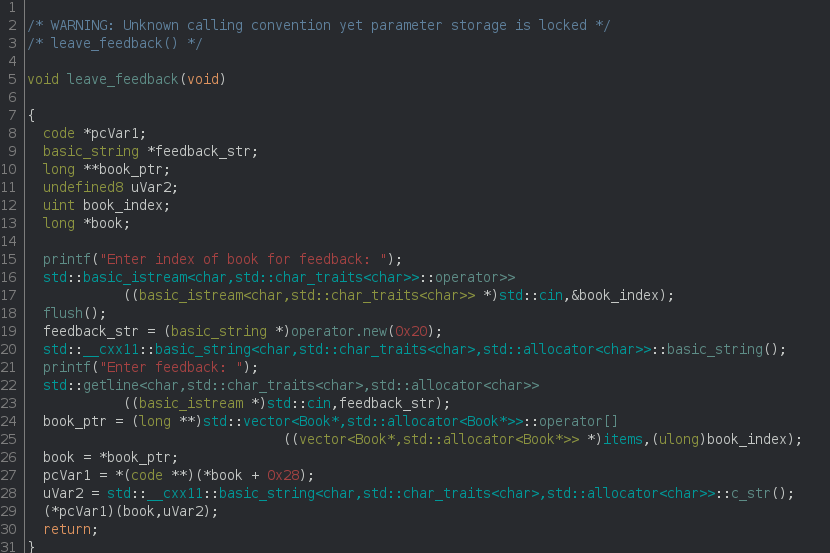

Figure 15: ghidra decompile of leave_feedback function

At line 15-16 the index of the book is asked, then a new feedback of fixed size is allocated (line 19). A string is retrieved from stdin (line 22), the book object pointer is retrieved from the items vector (line 24), a function pointer is extracted from the Book object content at offset Book+0x28 (40) (line 27), the string is converted to a c_string (line 28) and then passed as an argument to the previously extracted function (line 29). You see there are 2 arguments, the book and the string we are asked for.

Now it was clear for me that if in my faked book entry I put the address of LibraryItem::win instead of the address of Book::feedback (in location self+0x28 (40)) and tried to add a feedback on that faked book with an arbitrary command as feedback, system on this command will be executed!

Building the final exploit

So finally we needed to build a book that points to itself (first 8 bytes of memory must be the address of the memory we are writing to) and has the address of the LibraryItem::win function (using ghidra found at 0x401e30) at offset +0x28 (40):

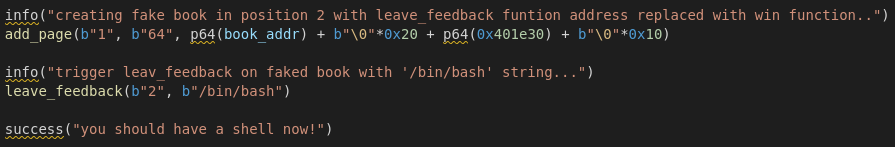

Figure 16: last part of exploit

we got remote code execution and retrieved the flag:

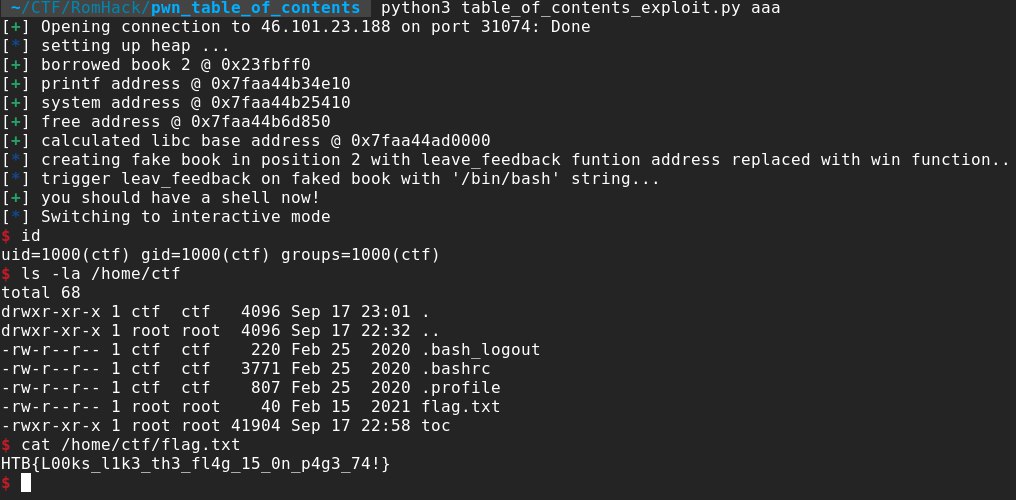

Figure 17: exploit running and getting the flag

hope you enjoyed my journey from starting the challenge to the final exploit! You can find the full exploit code on my github repo.

Happy hacking!
