Hostgroups are a grouping of hosts with similar characteristics such as geographical location, type, severity, environment, operating system, applications and much more.
Hostgroups can be created for multiple purposes such as:
Grouping hosts with common characteristics to view them as quickly as possible
Using them as filters to manage Roles with limited views and access to objects (RBAC)
Using them as notification filters
And much more
The default Host Group view is undoubtedly one of the most comfortable and useful ones in NetEye because, for each group, it immediately shows the status of all the hosts and their related services.
Since Hostgroups are so useful, why not also use them as a filter in an ITOA Dashboard?

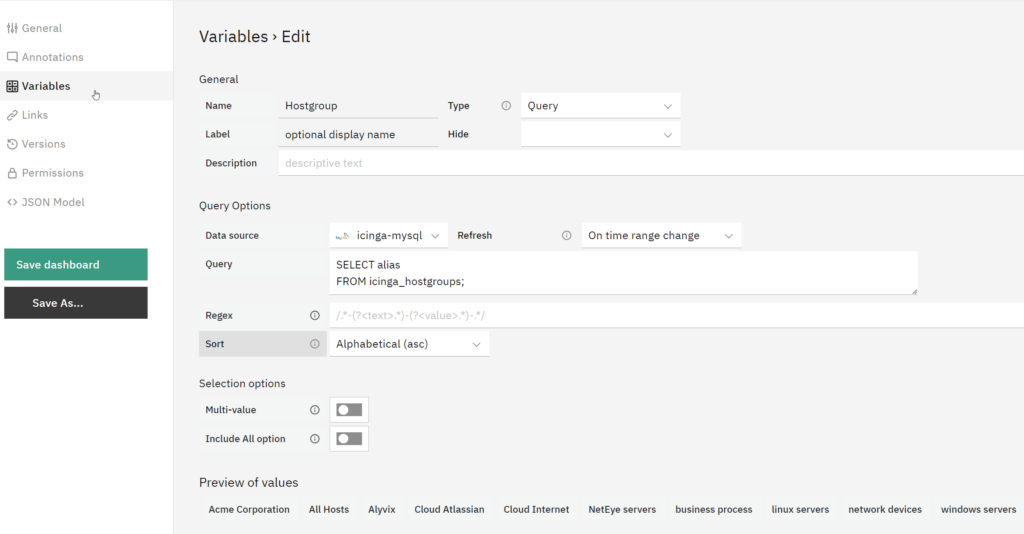

In order to use HostGroups as filters we first need to create a variable Hostgroup using the icinga-mysql datasource as follows:

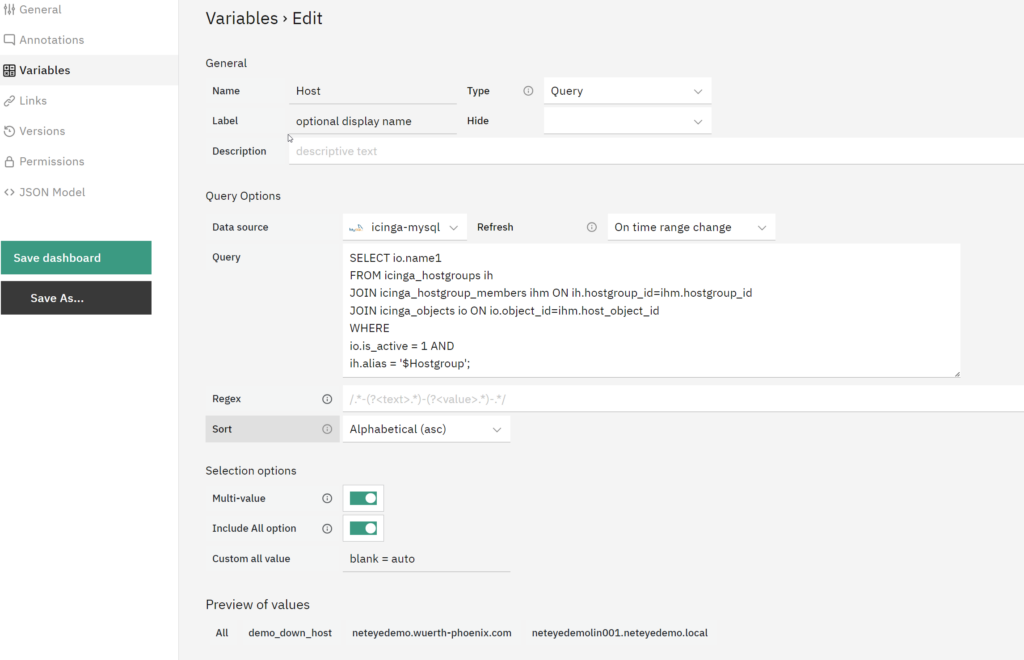

Next we need to create another variable that selects the hosts of the previously selected Hostgroup as the first parameter:
The query used is the following:
SELECT io.name1
FROM icinga_hostgroups ih
JOIN icinga_hostgroup_members ihm ON ih.hostgroup_id=ihm.hostgroup_id
JOIN icinga_objects io ON io.object_id=ihm.host_object_id
WHERE
io.is_active = 1 AND
ih.alias = '$Hostgroup';
Now we can create Dashboards that take advantage of these two filters.
In the example I am going to share, I had a customer whose request was: I need a dashboard that shows the host with the highest percent of packet loss of a selected Hostgroup, and a graph of the ping of all the hosts of a specific Hostgroup.

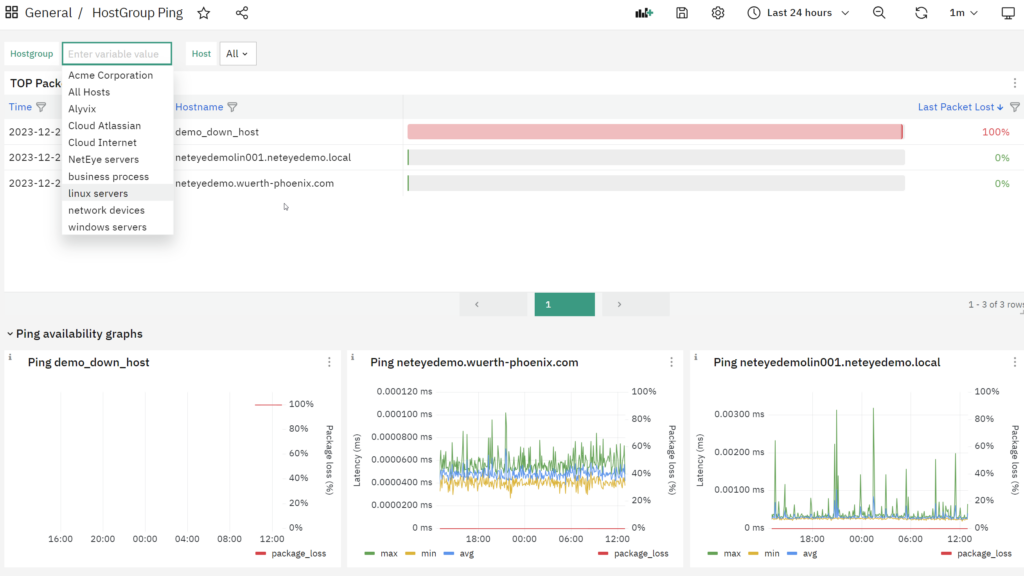

Example 1
Hostgroup: linux servers
Host: All

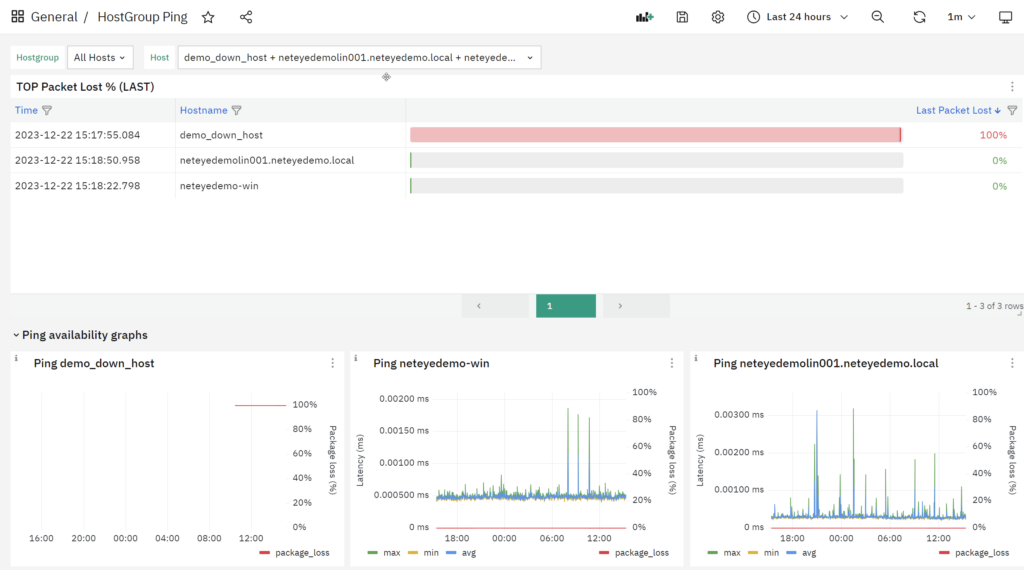

Example 2
Hostgroup: All Hosts
Host: custom selection
You can export this dashboard from our NetEye Demo. If you can’t remember how to export and import a dashboard into your NetEye, you can follow the instructions I included in this blog post.
