22. 10. 2010 Patrick Zambelli Log Management

Monitoring the status of the SAFED agent

This article will highlight quickly an approach for the monitoring of your syslog agent in terms of availability and reactiveness.

SyslogView OS agent check defintions

The NetEye SyslogView server includes a  check logic for the monitoring of the syslog agent on the remote server.

The monitoring techniques cover the strategy to launch a Nagios interpretable check command on the remote system via NRPE, or to interpret the web console of the agent.

For the monitoring the SAFED agent we prefer the web based approach since it is a rather easy way to keep track of the agent version installed on the system.

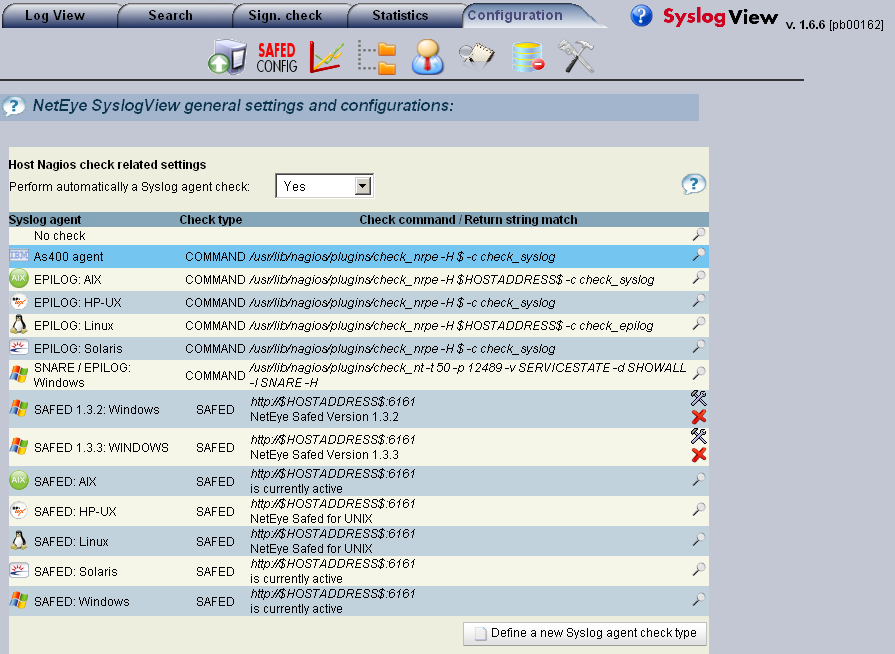

The following image should give an overview of the possible check definitions:

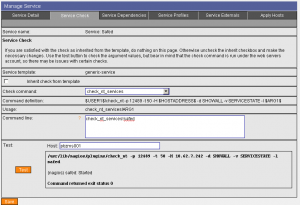

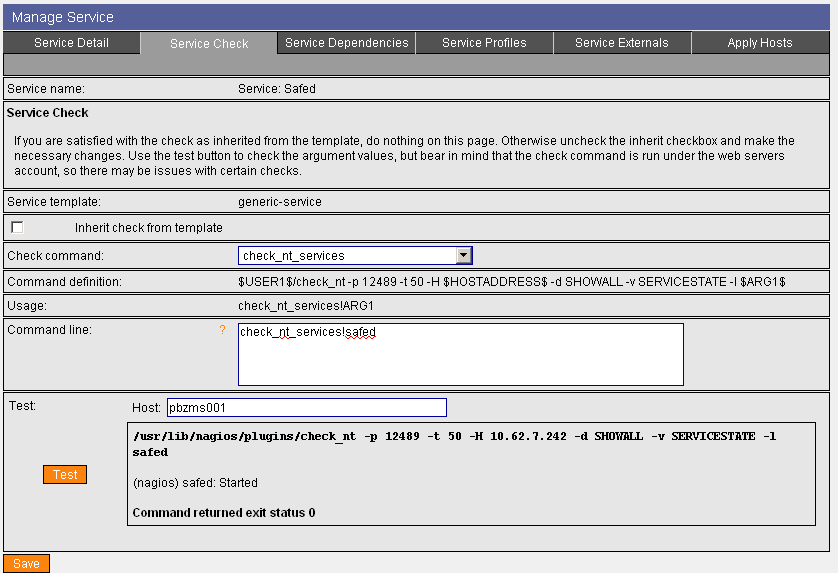

SAFED Service to be running running

Nagios shedulable service check definition:

/usr/lib/nagios/plugins/check_nt -p 12489 -t 50 -H 10.62.7.242 -d SHOWALL -v SERVICESTATE -l safed
safed: Started
Command returned exit status 0

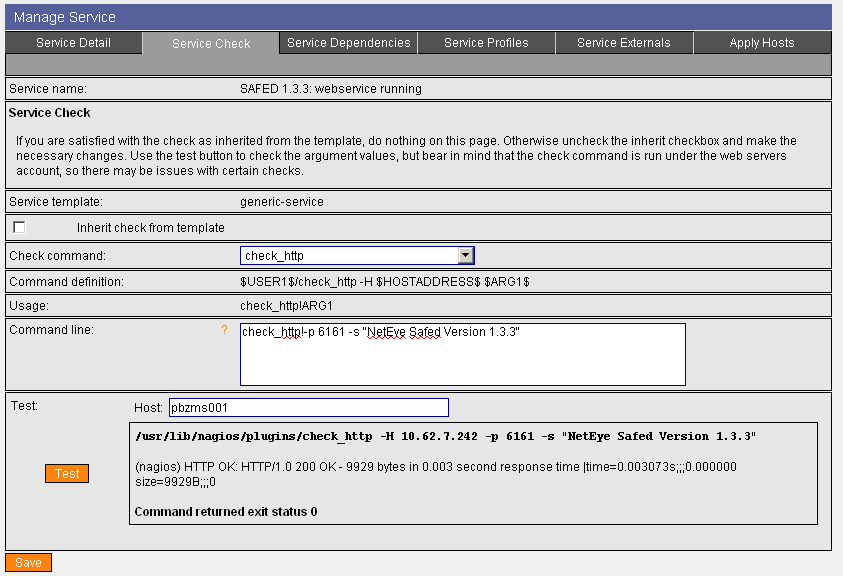

SAFED web interface to be reactive and check for determined agent version

Nagios shedulable web based check definition:

/usr/lib/nagios/plugins/check_http -H 10.62.7.242 -p 6161 -s “NetEye Safed Version 1.3.3”
HTTP OK: HTTP/1.0 200 OK – 9929 bytes in 0.003 second response time |time=0.003073s;;;0.000000 size=9929B;;;0
Command returned exit status 0
