NagVis is a visualization add-on for NetEye, and can be used to show NetEye monitoring data, over for example, a Network Schema as the use case below will show you.
Thanks to NagVis, you can import a previously created network schema into NetEye, and overlay network objects that have previously been monitored by NetEye.
Let’s start by describing how to proceed with the configuration of the NagVis module within NetEye.

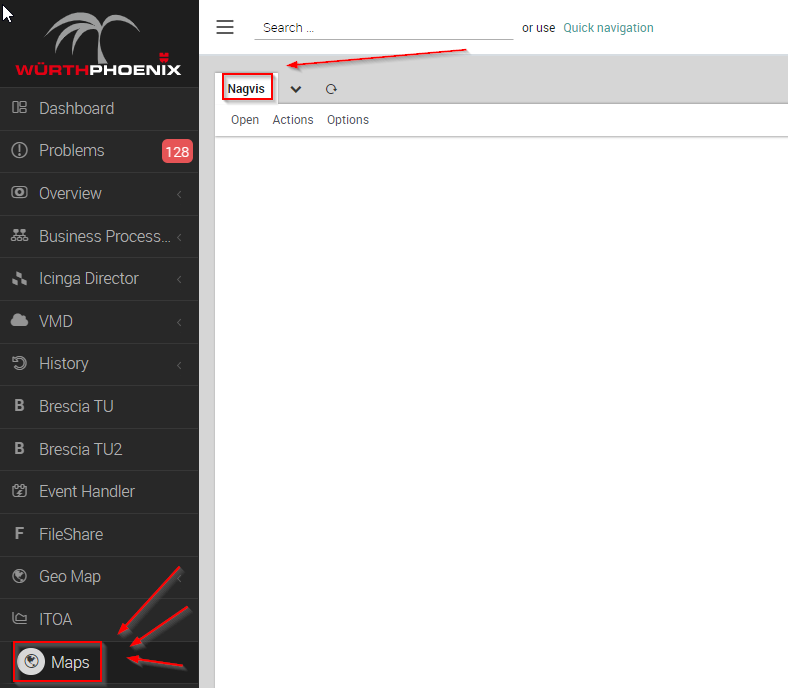

The NagVis module can be accessed via the main menu, as shown in this picture:

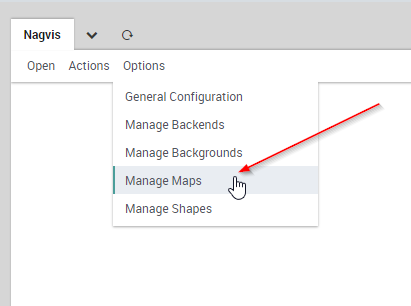

To create the map, go to Options > Manage Maps
Now under Create Map give the map a name, for example mymap, and an alias like My Map. For the Map Type select Regular map and launch it with Create button

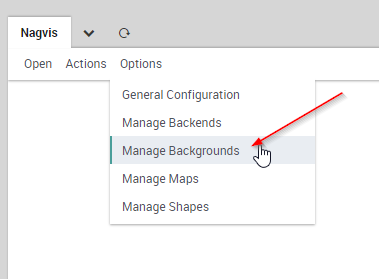

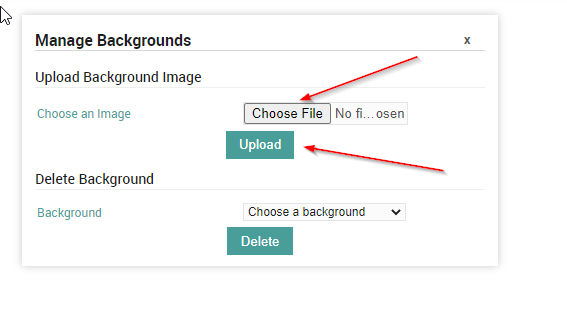

Next, import the Network Schema you want to monitor as the background image – this is achieved using Options > Manage Backgrounds. Simply select the local file and start the image upload with the Upload button

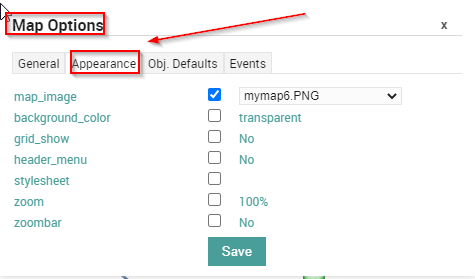

Now we need to define the imported image as the background for the current map. Call up the map options with Edit Map> Map Options and go to the Appearance tab. Here activate the map_image option and select the desired image from the dropdown menu. Don’t save it just yet, we will need a setting for the maps options.
Go to the Obj. Defaults tab. Here you can activate the label_show option. This option enables the host and service icons on the map to be labelled with their appropriate host/service names – otherwise the icons can only be identified via their hover-menus. Finally, save these settings.
In my case, since the network diagram is associated with many devices, and the labels would not be properly displayed on the network diagram, I decided not to enable the label option, but if you need to you can activate it:

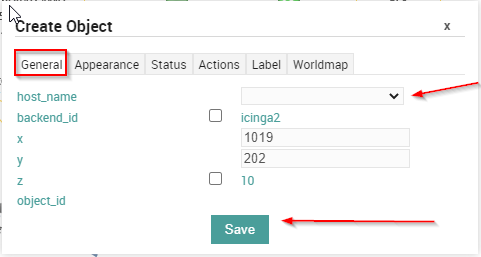

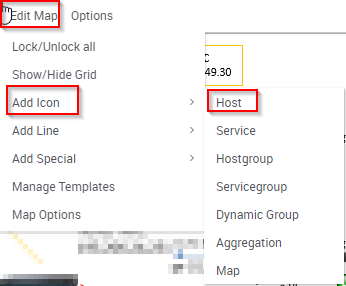

Now it’s time to add the host. Click on Edit Map > Add Icon > host and then place the cursor (which now appears as a cross) at the position on the map where the icon is – at this point the Create Object-dialogue will open. In the General tab simply select the desired host from the dropdown menu in host_name and save.
Remember that you’ll need to activate edit mode to be able to move or edit an icon. Right-click on the icon to open its context menu, and select Unlock.
